Laser fiber welding machine
1. Fast speed, high precision after proficiency, and more refined appearance;
2. The welding spot diameter can be adjusted according to the requirements, and the heat affected zone is small, which will not lead to the deformation of precision products;
3. It can weld small and fine geometric areas, suitable for all sizes of products;
4.Density welding will not produce pores and trachoma, and can be directly grinded and polished.

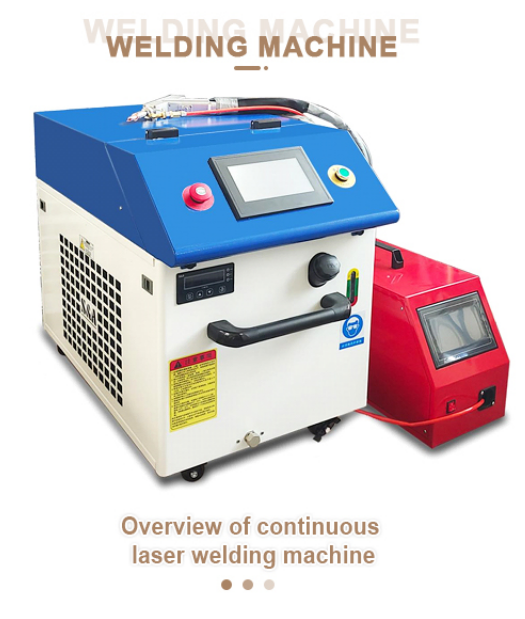

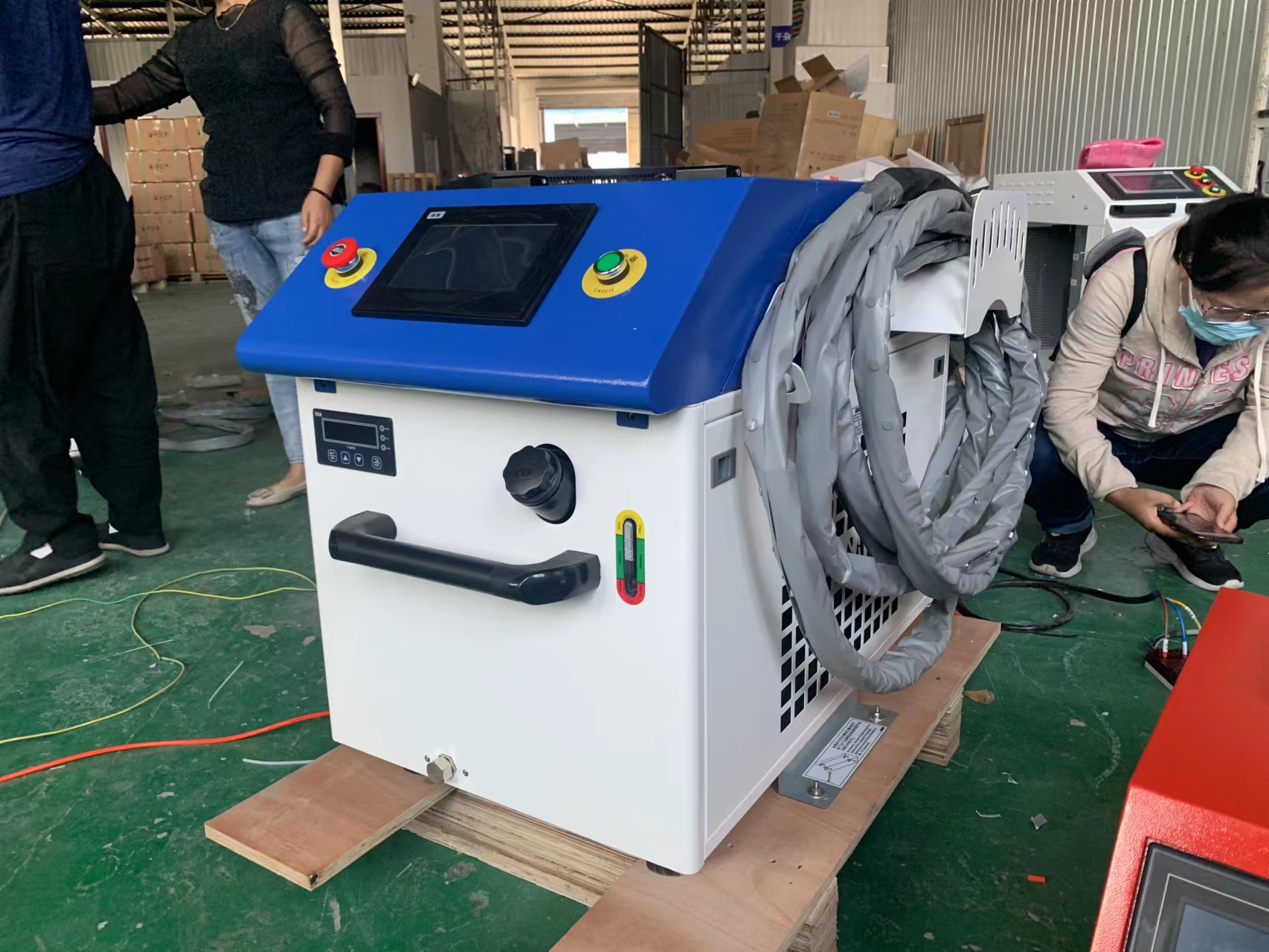

Small hand-held laser welding machine

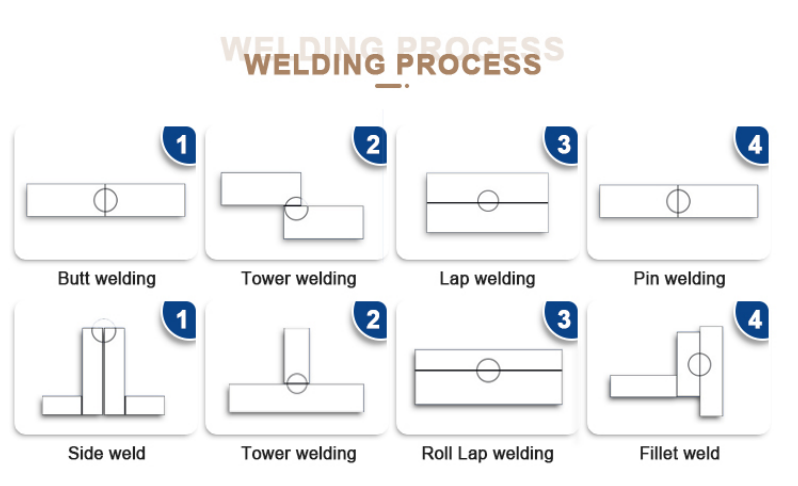

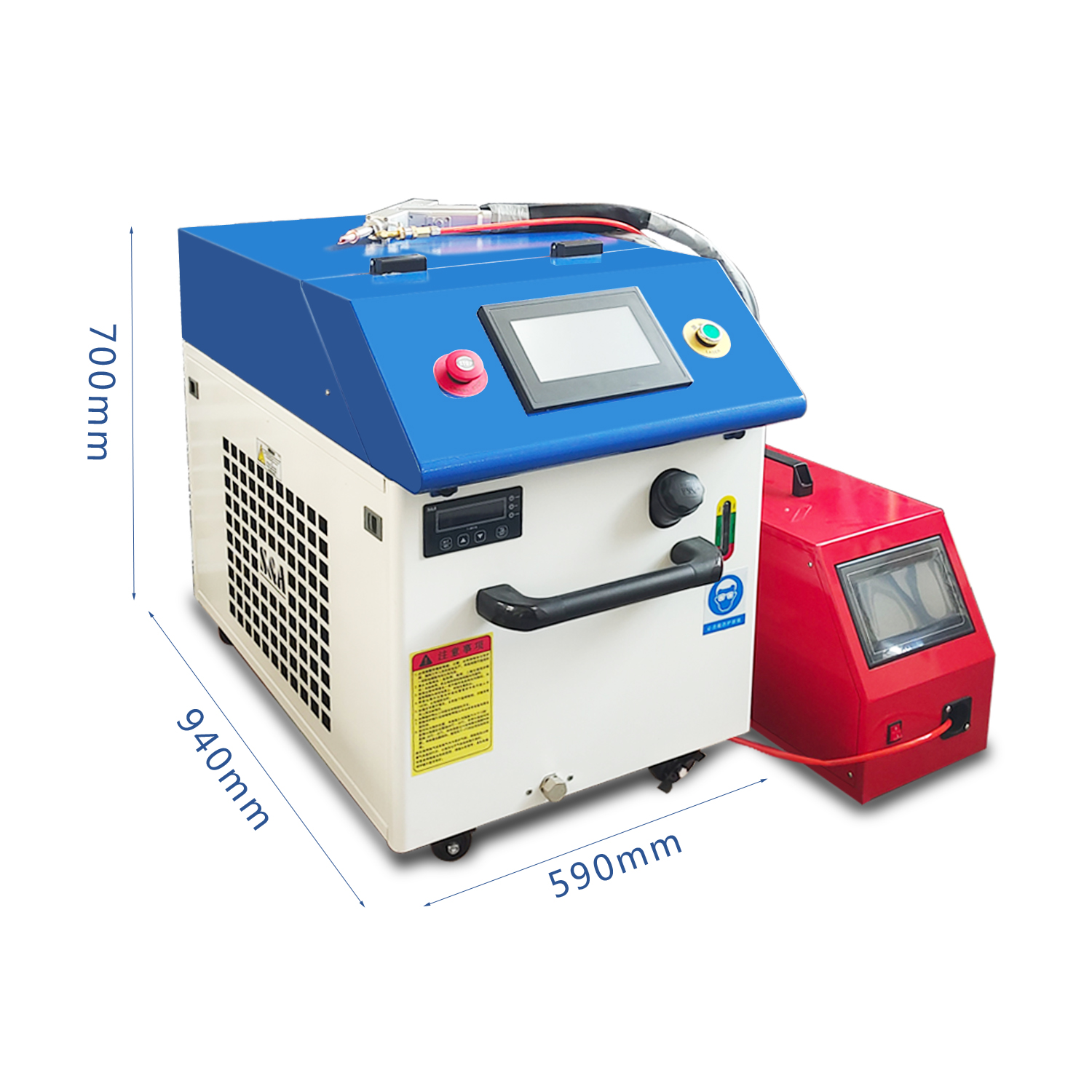

1．Overall dimensions of the machine
| power | 1000W | 1500W | 2000W |
| Laser | Max/reci/BWT/Raycus | ||
| Control system | super/au3tech/Qilin | ||
| Water cooler | Huaku/Hanli/S&A | ||
|
Size weight |
Very large：115x65x115 200KG | ||
| large-scale：105x60x90 180KG | |||
| small-sized：90x43x72 115KG | |||
| maximum power | ≤5.5KW | ≤7.5KW | ≤10KW |
| Power supply demand | 220V | 220V | 220V/380V |
| Central wavelength | 1080±10nm | ||
| Fiber length | 10m | ||
| Fiber core diameter | 50um | ||
| operation mode | Continuous/Modulation | ||
| Galvanometer width | 0-5mm | ||
| Galvanometer speed | 0-300HZ | ||
| welding speed | 0-12mm/s | ||
| Cooling mode | hydrocooling | ||
| Cooling medium | Purified water (add a certain proportion of antifreeze in winter) | ||
| Weld thickness | 2.5mm | 3.5mm | 4.5mm |

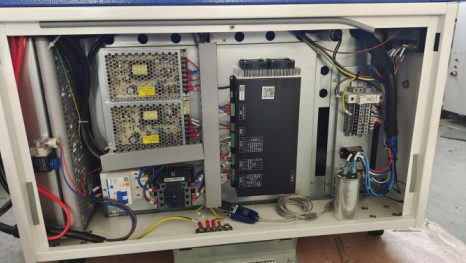

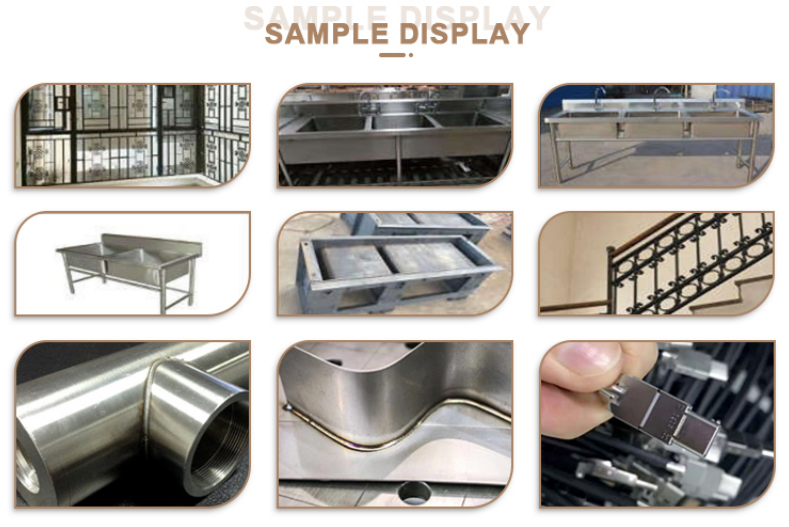

| Applicable materials | Stainless steel/carbon steel/galvanized sheet/iron/aluminum/aluminum alloy | ||
| Gap requirements | 0-1.5mm | ||
| Wire feeding specification | 0.8/1.0/1.2/1.6 | ||

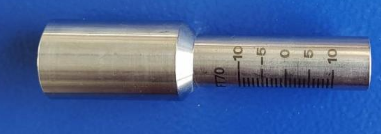

Spare parts description
|
8 different welding nozzles weld any plane figure composed of points |
 |
 |
High electric-optical conversion rate, low energy consumption, and reasonable |
|
The equipment has high reliability and can be processed continuously and stably for 24 hours to meet the needs of industrial mass production and processing; |
 |

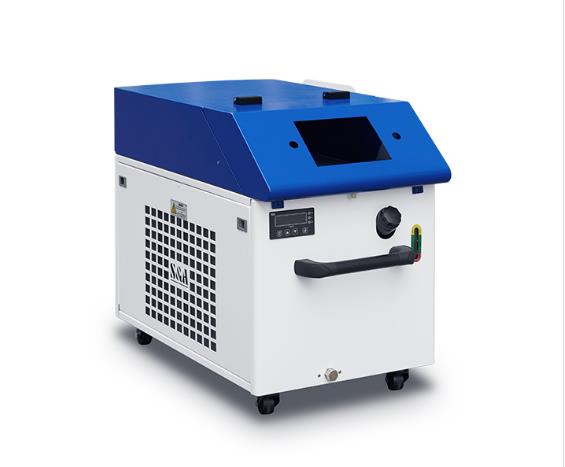

1.2 Parameters of water cooler
|
Refrigeration capacity |
6.2KW |
|
Water tank volume |
24L |
|
Cryogen |
R22 |
|
Water temperature control range |
26±1℃ |
|
Alarm function |
Water level, low temperature, high temperature, overload, etc |
|
Environmental requirements |
Temperature: 5-45 ℃; Humidity 10-90% |
1.3 Welding joint parameters
|
Interface type |
QBH |
|
Power range |
0-3000 W |
|
Laser wavelength |
1064nm |
|
Light plate adjustment |
（0.2-5）MM/ Optional |
|
Collimating focal length |
50MM |
|
Focus length |
120/150MM |
|
Protective lens |
D20X2MM |
|
Cooling mode |
Hydrocooling |
|
Handle weight |
0.6-0.8kg（Ultra light mini style） |
|
Pattern |
Welding+cutting |
1.4 Thickness parameters of welding metal materials
|
Material name |
1000W |
1500W |
2000W |
|
SUS |
0.5mm-3mm |
0.5mm-4mm |
0.5mm-5mm |
|
Fe |
0.5mm-3mm |
0.5mm-4mm |
0.5mm-5mm |
|
Al |
0.5mm-2mm |
0.5mm-3mm |
0.5mm-4mm |
|
Cu |
0.5mm-3mm |
0.5mm-6mm |
0.5mm-8mm |
|
Galvanized sheet |
0.5mm-3mm |
0.5mm-4mm |
0.5mm-5mm |
|
Carbon steel |
0.5mm-3mm |
0.5mm-4mm |
0.5mm-5mm |
