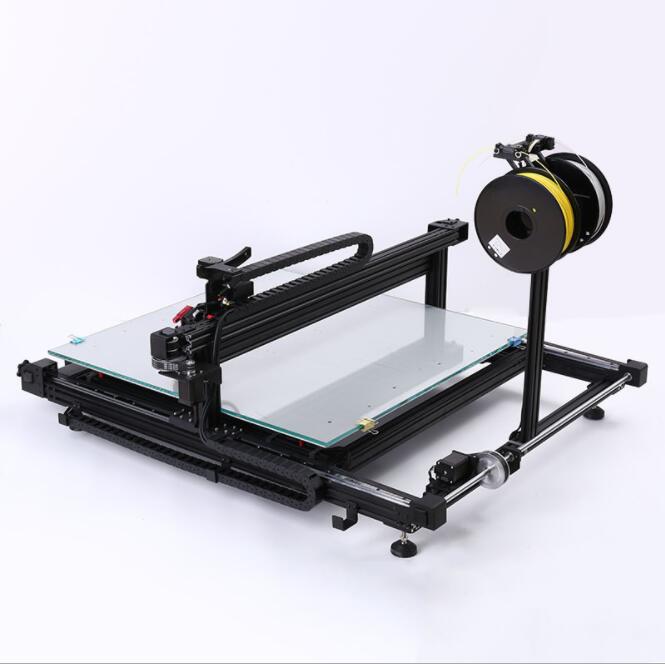

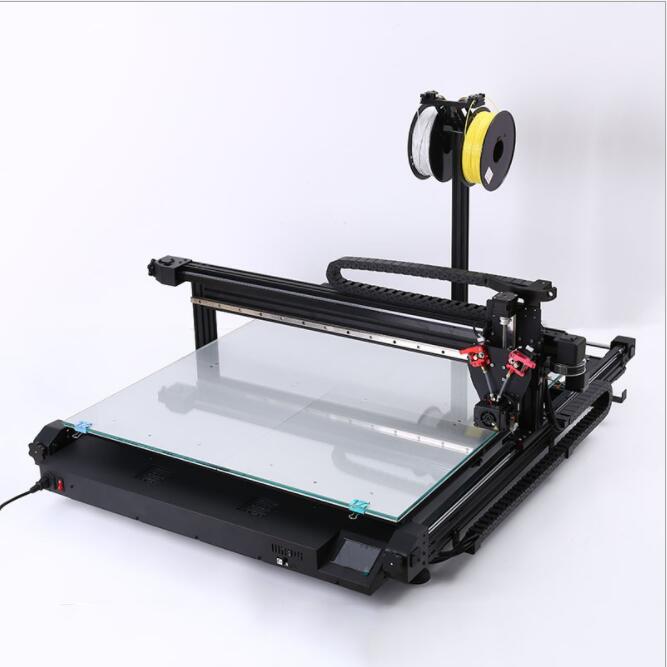

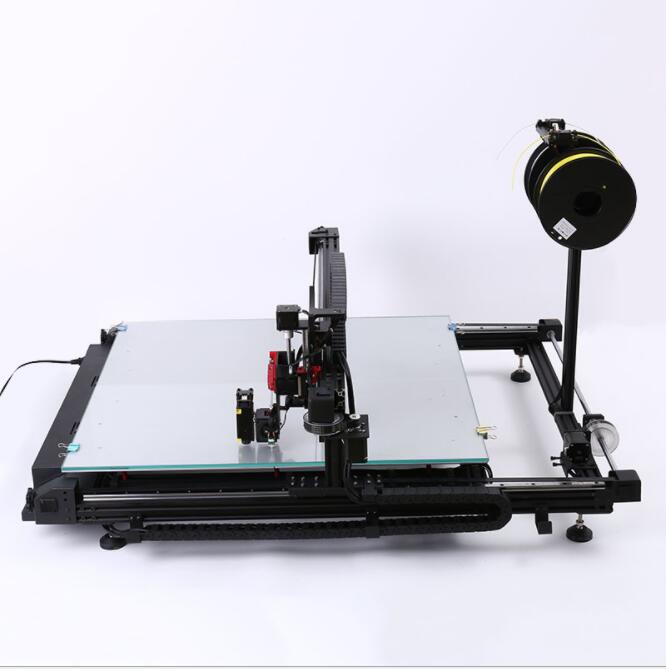

3D printer
Brief introduction
As a new trend, 3D printers have begun to be widely used in the design field, especially in industrial design, digital product molding, etc. They can complete the printing of a mold in a few hours, saving a lot of product development time to the market. 3D printers can print 3D models using various raw materials. Using 3D aided design software, engineers can design a model or prototype and print it using our company's 3D printers. The printing materials can be organic or inorganic materials, such as rubber and plastic.
Our 3D printer is a device that can "print" real 3D objects. It is now widely used in the advertising word industry, producing strong three-dimensional advertising words that can choose multiple colors on the same word. Adopting layered processing and superimposed forming, which generates 3D solids by adding materials layer by layer, is completely different from traditional material removal processing techniques. With the continuous progress of this technology, we have been able to produce 3D models that closely resemble the appearance, feel, and functionality of the prototype.
PRODUCT PARAMETER
|
Model |
6060 Model |
8080 Model |
8080 advanced Model |
|
Printing size |
600*600*100mm |
800*800*80mm |
800*800*80mm |
|
Machine size |
1000*1000*650mm |
1200*1200*650mm |
1200*1200*650mm |
|
Machine weight |
60kgs |
90kgs |
90kgs |
|
Packing size |
1100*1100*750mm |
1300*1300*750mm |
1300*1300*750mm |
|
Packing weight |
100kgs |
120kgs |
120kgs |
|
Level Adjustment function |
Without |
With |
With |
|
Printing Speed |
100mm/s |
100mm/s |
140mm/s |
|
Printing head temperature |
270℃ |
|
|
|
Voltage |
110-240V output 24V |
|
|
|
Print bottom temperature |
80℃ |
|
|
|
Materials diameter |
1.75mm |
|
|
|
Software language |
English |
|
|
|
Interface language |
Chinese, English |
|
|
|
Operation System |
Windows , Lunis , Mac |
|
|
|
Materials applied |
PLMA |
|
|
|
File Format it support |
DXF, NC , STL, Idj |
|
|
Details
| Industrial linear Guide rail XYZ all use linear guiderail, X Y axis adopt dual guide rails structure, more stable , linear guide rails precision can reach to 0.02μm. |
 |
| Automatic adjustment level function Plug and play, no need to adjust level manually , big glass platform, make sure the distance between table and printing head is same, can ensure the edge is flat , easy to make 3D letters |
 |

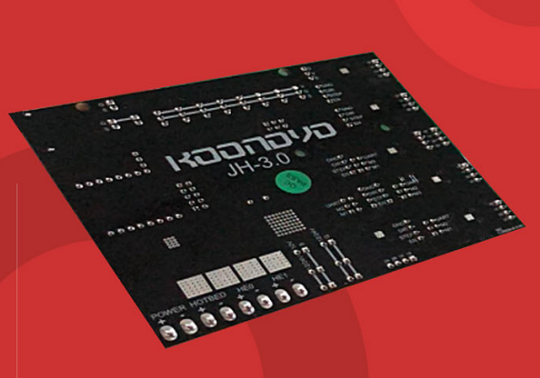

| Independently developed motherboard High configuration, support Wi-fi connection update , adopt ARM32 bits High frequency master chip to run , more stable. |
 |

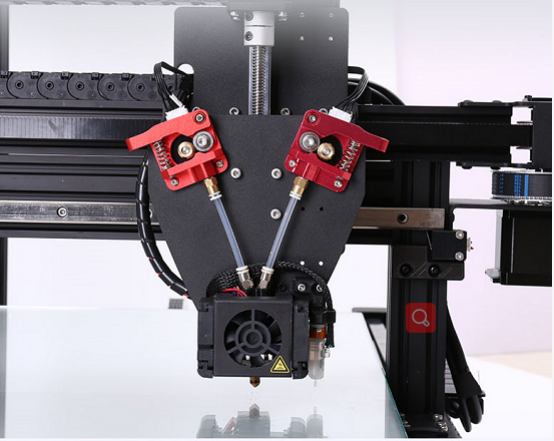

| Big Capacity printing head The printing heads are not easy to be blocked, added two cooling fans to distribute heat quickly, can print small letter without reducing the speed. |
 |
| Power supply Use Taiwan Mingwei Brand , big power supply to supply enough power stable. |
 |

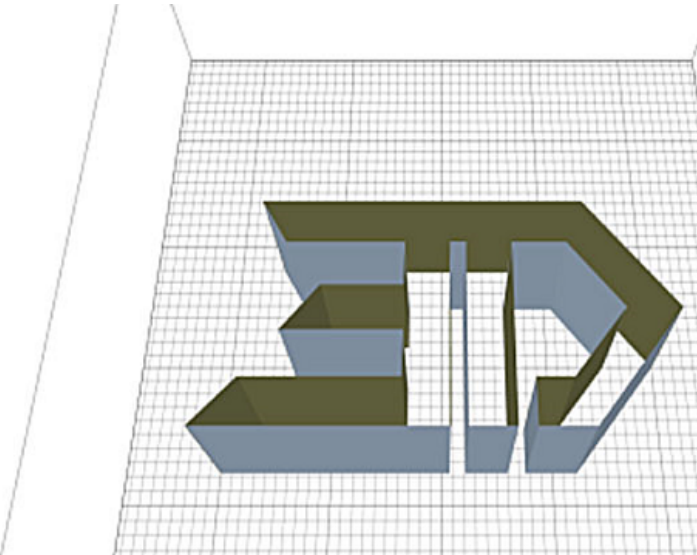

| English operational software Support CDR, AI, Artcut etc software , can print vertical edge, bevel edge , abnormal shape,. Software can update for free all life. With detailed manual and professional after service. |
 |
| Independent research and development Own a number of patents Patents of electrical board Patents of whole structure and core parts structure Patents of software |
 |

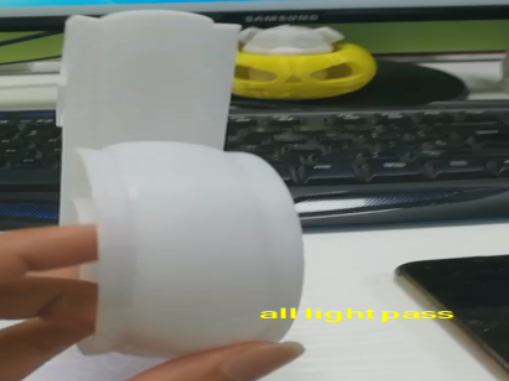

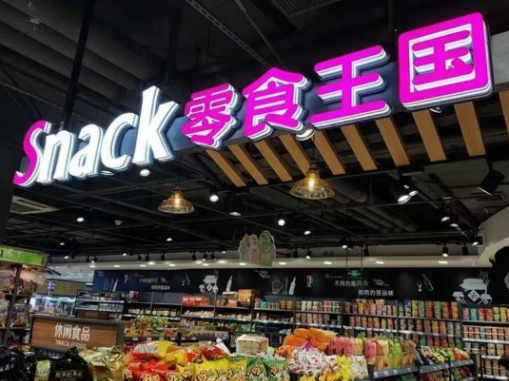

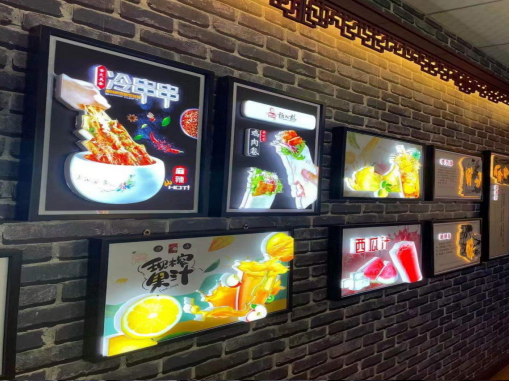

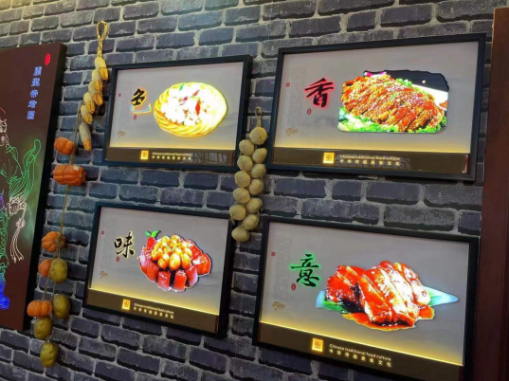

Sample
 |
 |
 |
 |
 |
 |

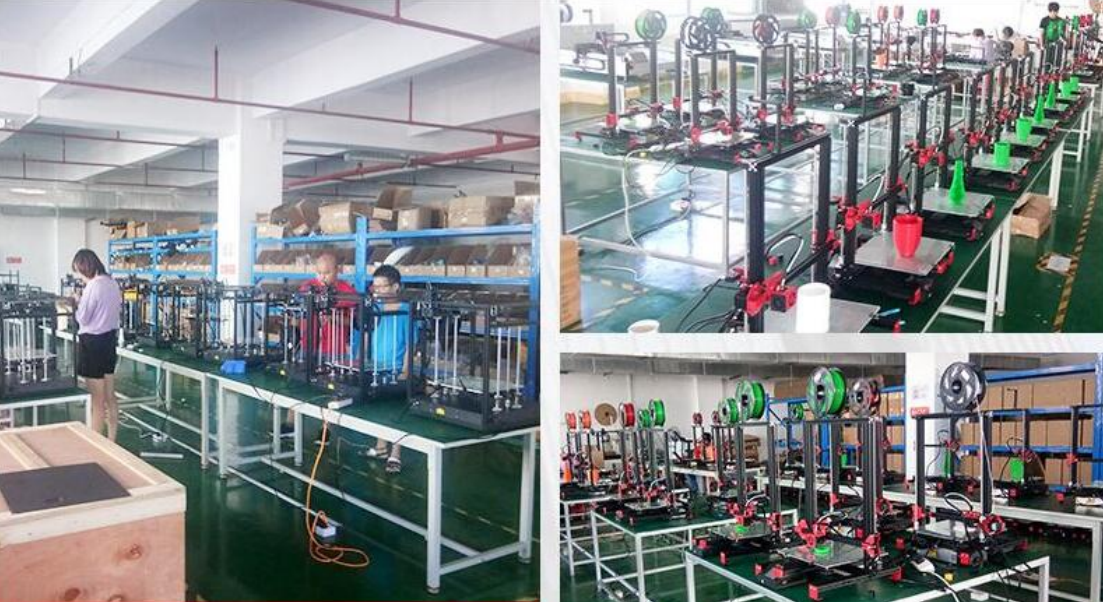

Factory
