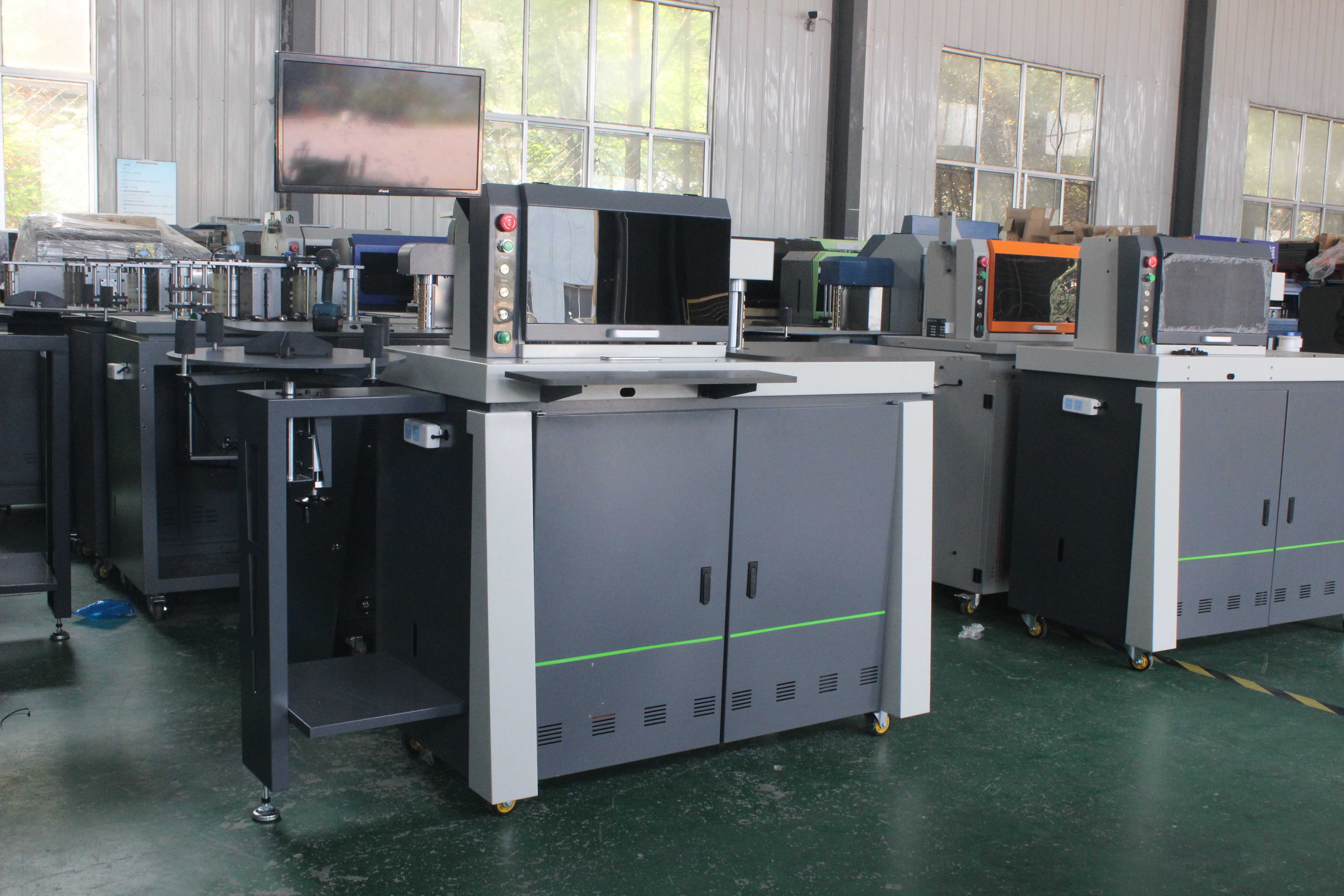

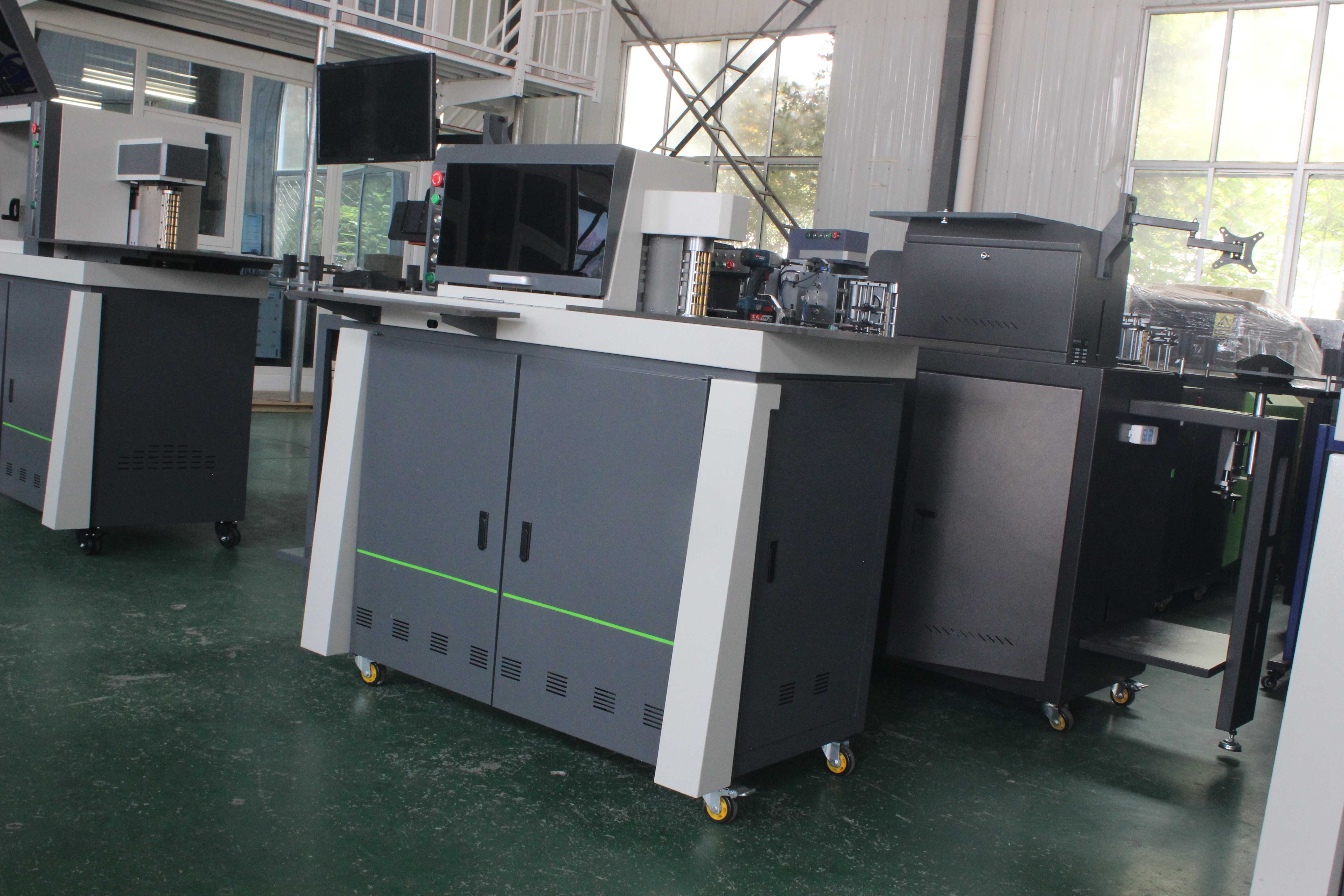

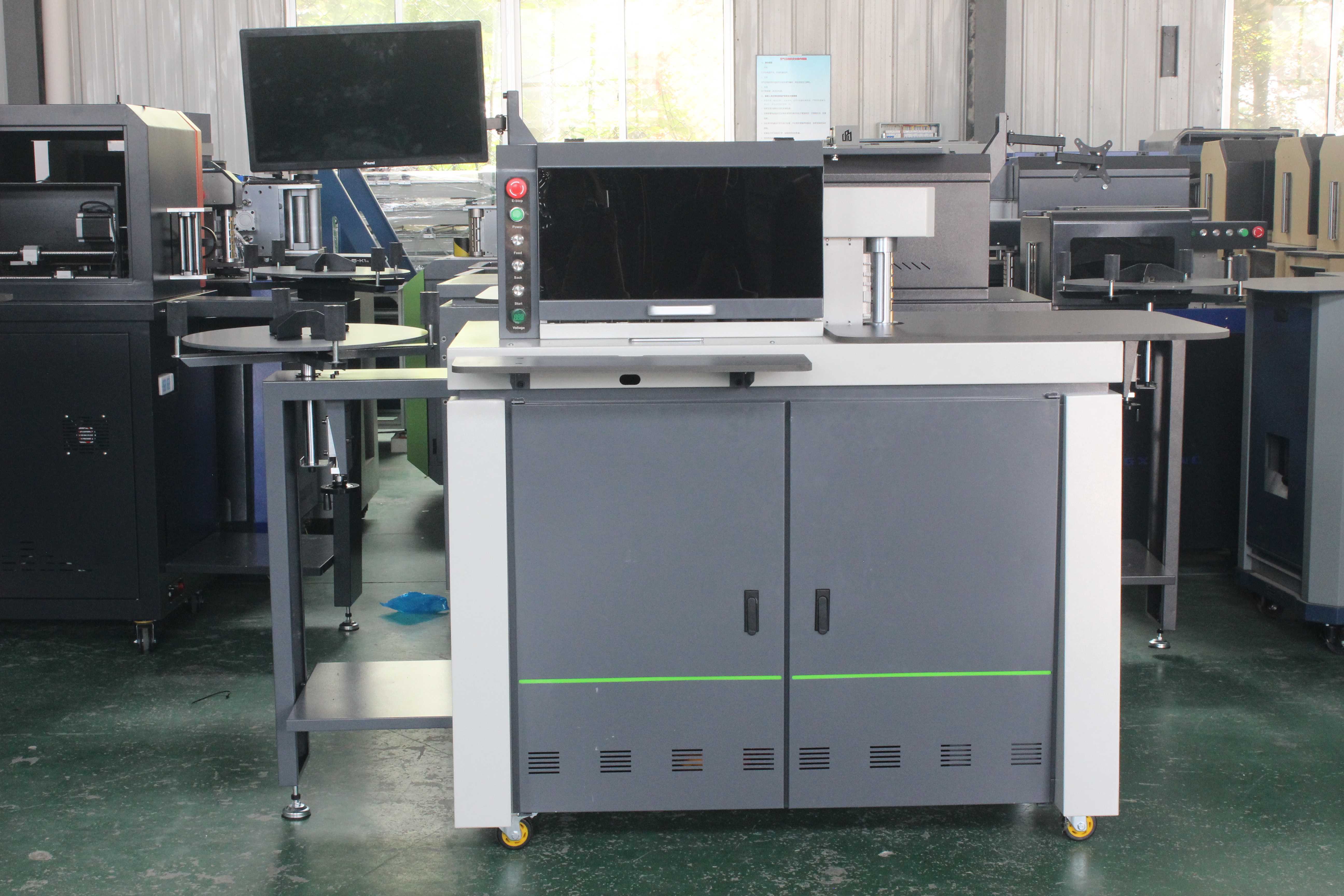

YN-VA lettering machine

Brief introduction

Weifang Yunneng CNC Equipments Co,.ltd channel letter bending machine is a type of bending machine, also known as coil bending machine, which is specialized for advertising. It is commonly a CNC type and has slotting function. It is completed as a whole after inputting text programs. The model is basically a horizontal automatic advertising equipment used to automatically bend and shape the outer contour of metal luminous characters. In advertising production, the literal processing of metal luminescent characters is mainly completed through carving machines or plasma cutting machines. With the rapid development of the advertising production industry, the advertising equipment for literal processing has entered a mature development period. Metal luminescent characters mainly include iron sheet characters, stainless steel characters, aluminum profile characters, etc. Its main components include: feeding, slotting, bending, cutting, and other functions. The main materials used are stainless steel strips, aluminum coils, specially made aluminum profiles, and iron sheet coils. After transporting the material through the designated distance through the feeding device, perform operations such as slotting, bending, and cutting, and then repeat this step until the material is fully formed. The emergence of the typesetting machine has broken the traditional pattern of advertising production, allowing for a wider range of material choices. For material processing that traditional manual processes cannot involve, such as 0.8-1.2mm thick stainless steel, the typesetting machine can easily achieve processing through automatic feeding, automatic slotting, automatic bending and other processes. Of course, for ordinary iron sheets, galvanized sheets, aluminum sheets, and aluminum profiles, Weifang Yunneng CNC Equipments Co,.ltd ‘s channel letter bending machine can also be perfectly processed.

Technical Parameter

Technical parameter
Applicable materials	Aluminum strips,aluminum coils,folded edge aluminum profile
Materials thickness	0.3-1.5mm on aluminum
Materials width	30-150mm
Letter range	80mm and more
Power Supply	220V/50Hz/1 phase
Slot angle	35-145°
Engraving Command	AI, PLT, DXF
Max power	3KW
Feed speed	10-40m/min
Driver method	Chinese Stepper drivers and motors
Interface	PCI Port or USB Port
Memory Buffer	128MB
Command Language system	English Version, Window 98/2000/XP Operation System
Operational Software	Coreldraw,Auto CAD,Illustrator

Advantages

① Humanity operation interface

Simplified software interface, easy to operate and user-friendly controls, even freshman can work on it easily

② Cutter protective cover

Better protection for users.

③ Multiple work contents at once

No need to select files one by one, you can select several letters once, then work it out. It is both time and material saving.

④ One click depth adjustment
Automatic adjustment of cutting depth for planer system, easy to operate.

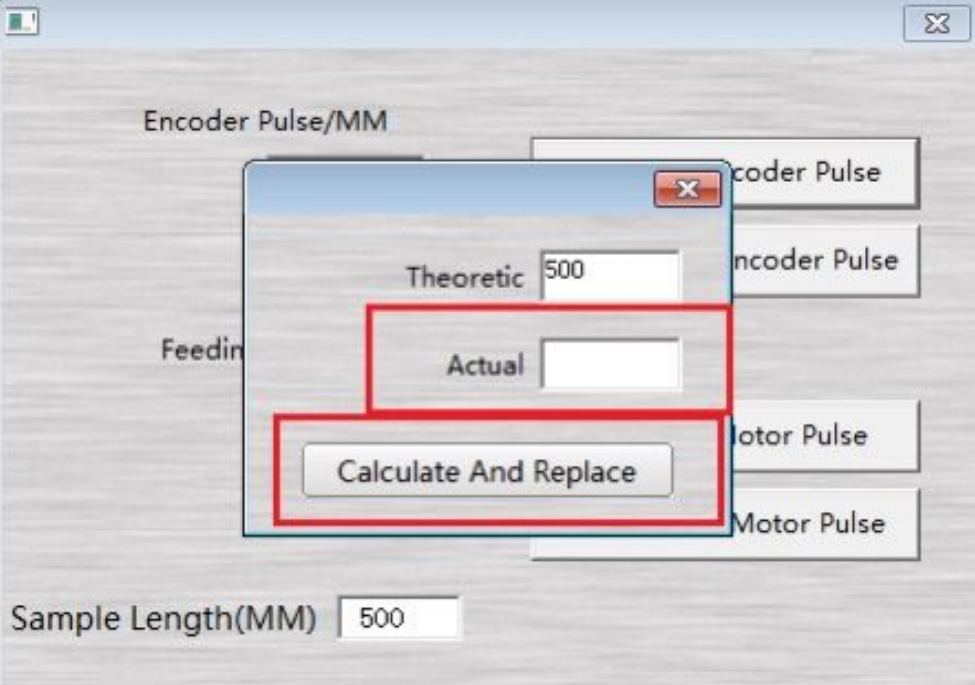

⑤ Automatic length Test
The software and encoder form a closed-loop detection system, the feeding length is precisely guaranteed to ensure the end products 100% matches the files .
