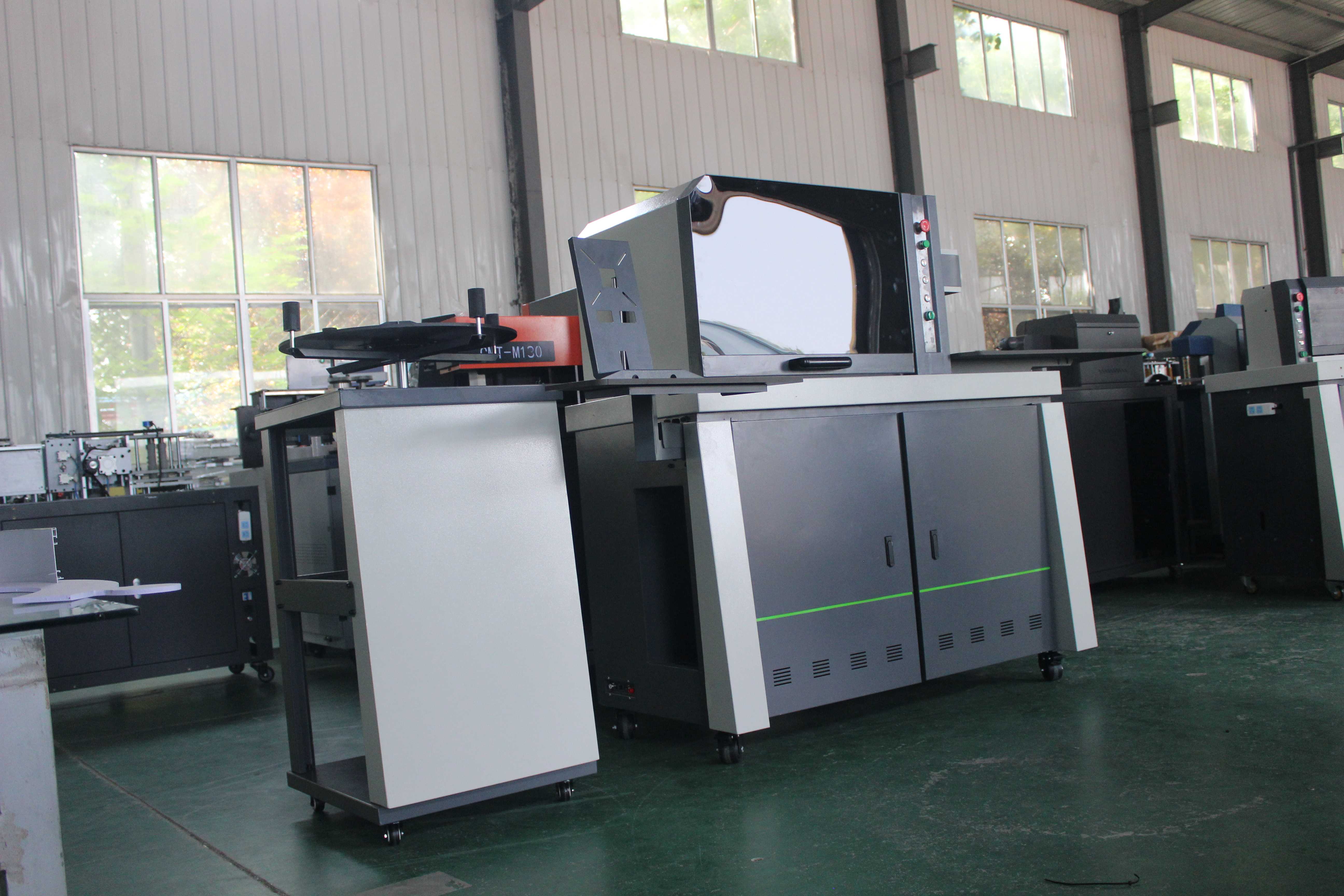

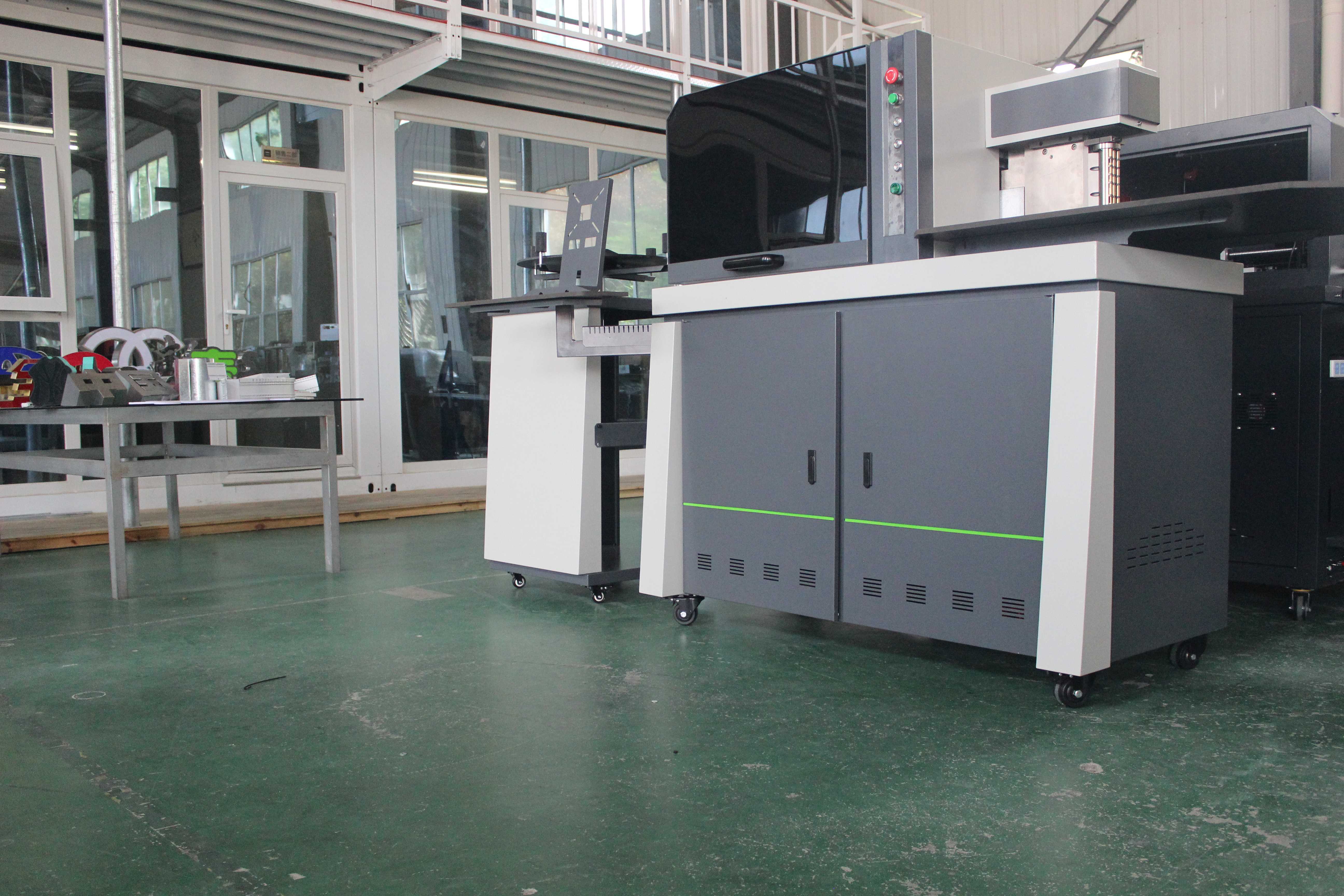

YN-VC lettering machine

Brief introduction

Weifang Yunneng CNC Equipments Co,.ltd channel letter bending machine is a type of bending machine, also known as  coil bending  machine, which is specialized for advertising. It is commonly a CNC type and has slotting function. It is completed as a whole after inputting text programs. The model is basically a horizontal automatic advertising equipment used to automatically bend and shape the outer contour of metal luminous characters. In advertising production, the literal processing of metal luminescent characters is mainly completed through carving machines or plasma cutting machines. With the rapid development of the advertising production industry, the advertising equipment for literal processing has entered a mature development period. Metal luminescent characters mainly include iron sheet characters, stainless steel characters, aluminum profile characters, etc. Its main components include: feeding, slotting, bending, cutting, and other functions. The main materials used are stainless steel strips, aluminum coils, specially made aluminum profiles, and iron sheet coils. After transporting the material through the designated distance through the feeding device, perform operations such as slotting, bending, and cutting, and then repeat this step until the material is fully formed. The emergence of the typesetting machine has broken the traditional pattern of advertising production, allowing for a wider range of material choices. For material processing that traditional manual processes cannot involve, such as 0.8-1.2mm thick stainless steel, the typesetting machine can easily achieve processing through automatic feeding, automatic slotting, automatic bending and other processes. Of course, for ordinary iron sheets, galvanized sheets, aluminum sheets, and aluminum profiles, Weifang Yunneng CNC Equipments Co,.ltd ‘s channel  letter bending machine can also be perfectly processed.

Technical Parameter

Machine Features

1.Fully automatic feeding, automatic slotting and automatic bending according to the characteristics of the font.
2.The feeding adopts feeding feedback of closed-loop encoder, which effectively avoids size inaccuracies caused by material sliding.

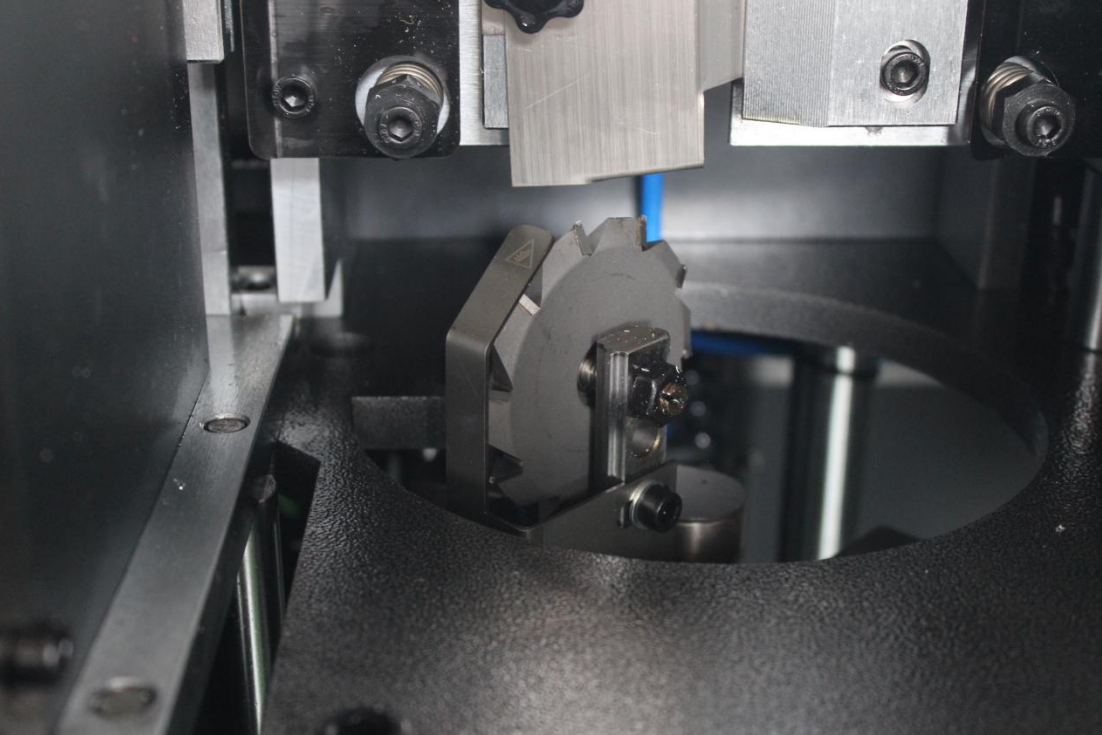

3.Material grooving adopts a planer imported from Japan, which has low cutting sound, wear-resistant, not easy to break, and easy to replace.
4.The slotting method adopts high-precision guide rail and pneumatic system, ultra-hard white steel blade slotting method, low cost and good effect.
5.The bending system adopts a high-precision servo system, which effectively increases the speed of the arc.
6.Humanized operating software, fixed grooving depth, durable tool, and constant depth.
7.Special specifications can be customized.

Advantages

① Humanity operation interface

Simplified software interface, easy to operate and user-friendly controls, even freshman can work on it easily

② Cutter protective cover

Better protection for users.

③ Multiple work contents at once

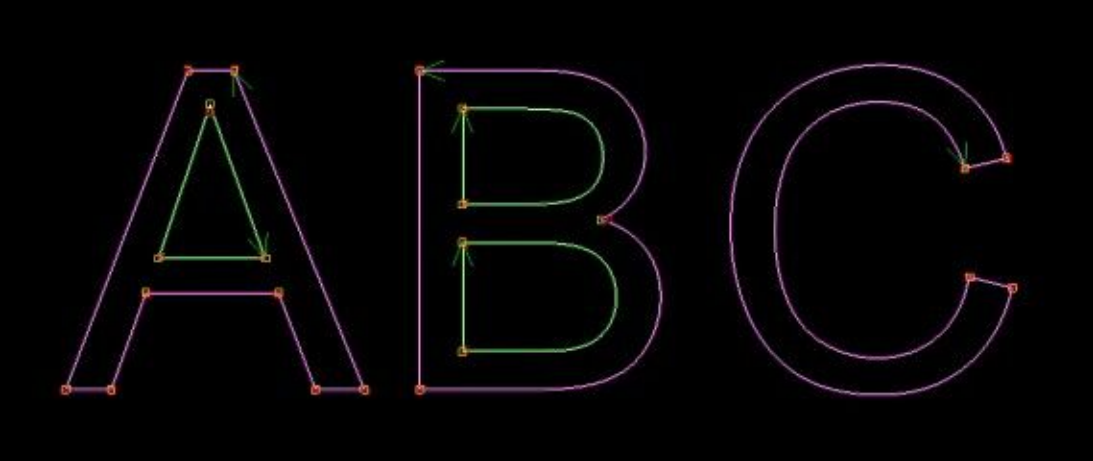

No need to select files one by one, you can select several letters once, then work it out. It is both time and material saving.

④ One click depth adjustment

Automatic adjustment of cutting depth for planer system, easy to operate.

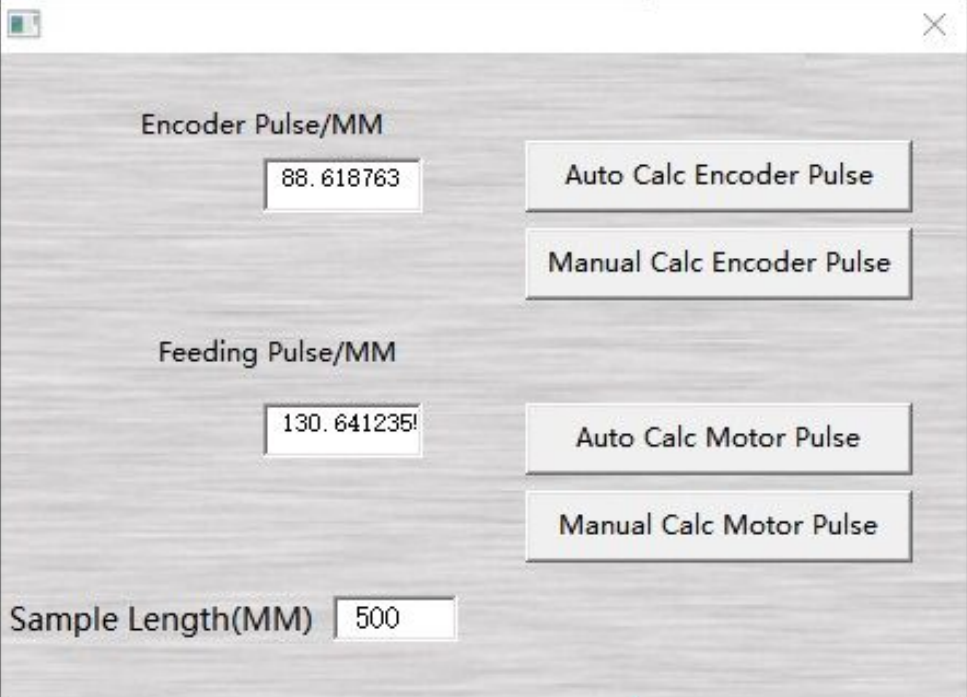

⑤ Automatic length Test
The software and encoder form a closed-loop detection system, the feeding length is precisely guaranteed to ensure the end products 100% matches the files .

⑥ Voltage Warning
When voltage is not normal, there will be a warning to avoid machine getting damaged.

⑦ Arc Test
Add comparison Graph for arc bending Test, save working time.

Samples
