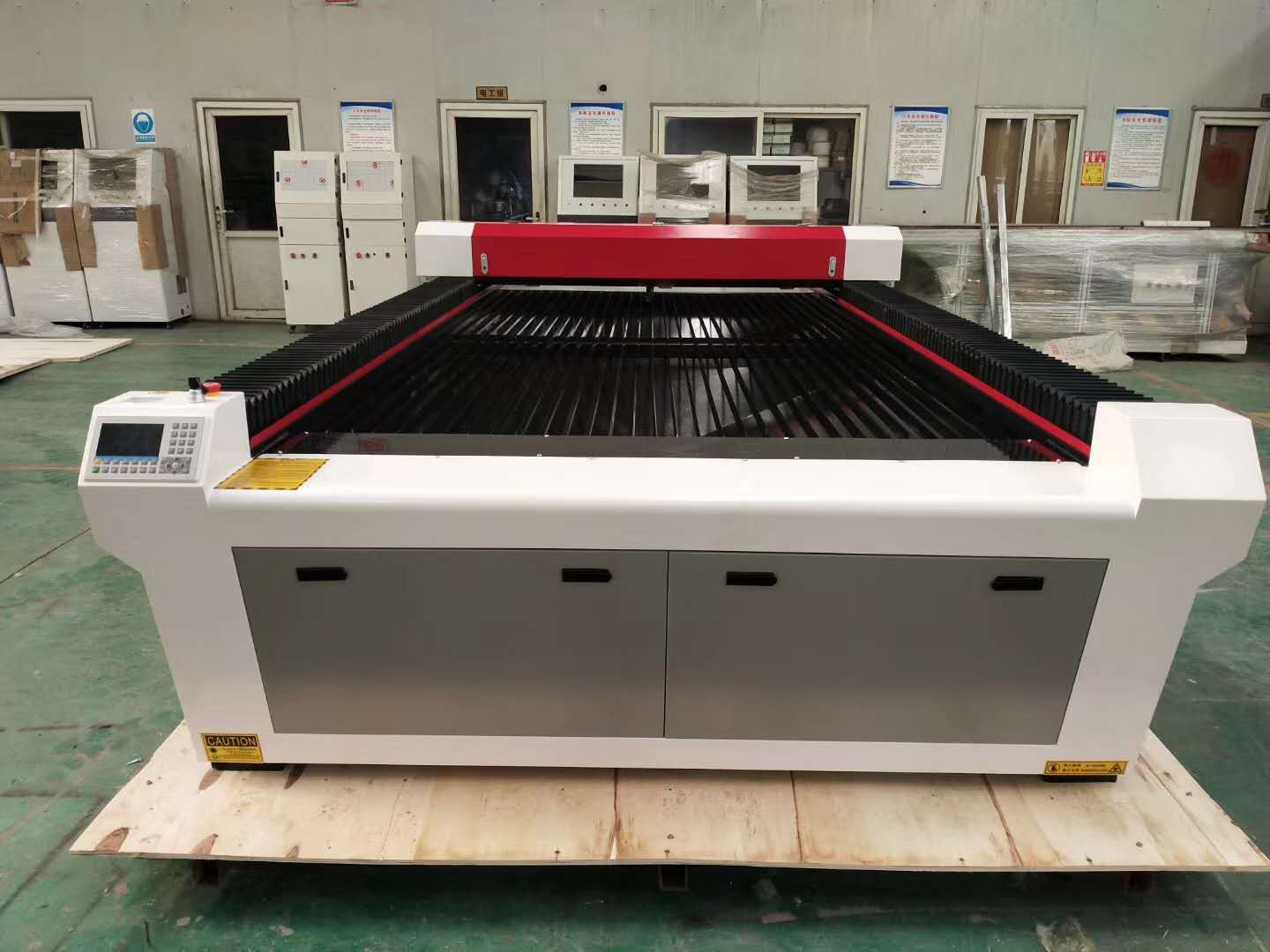

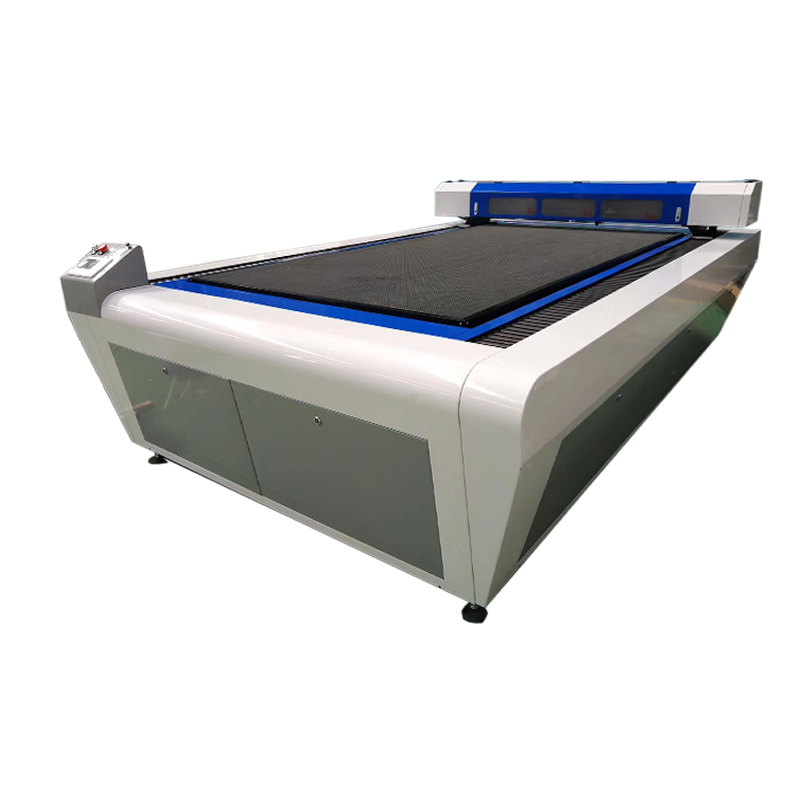

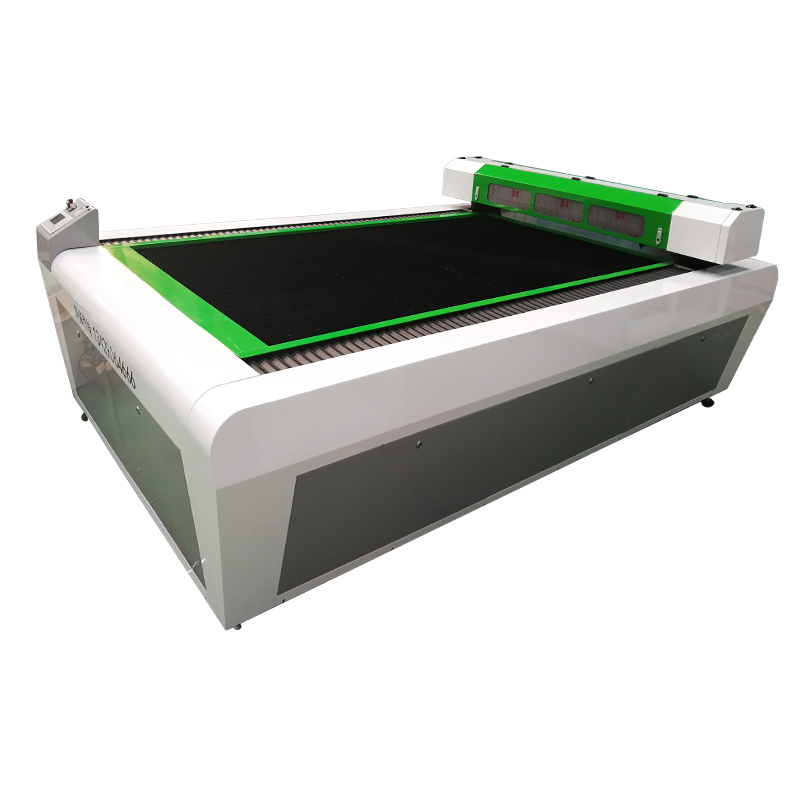

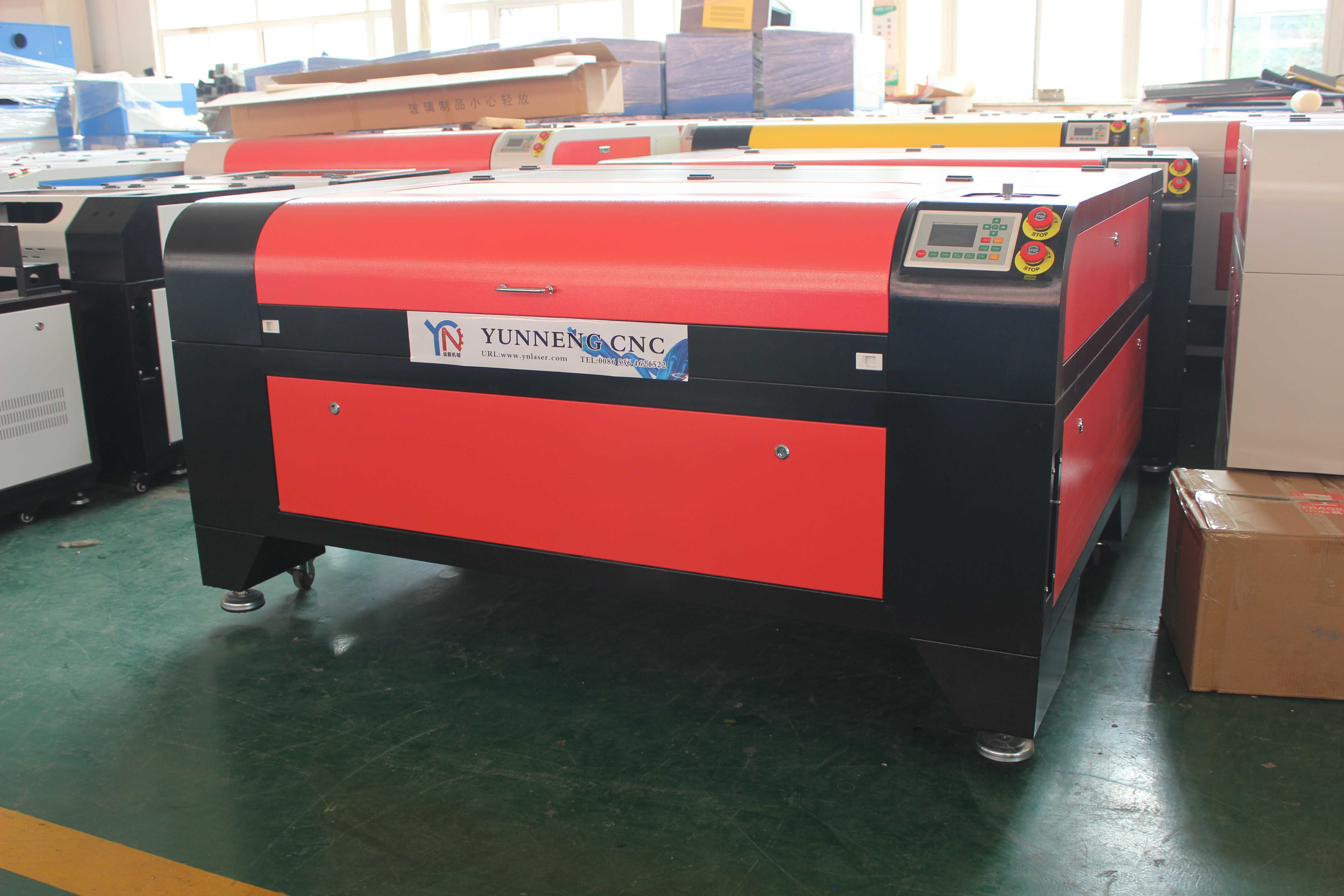

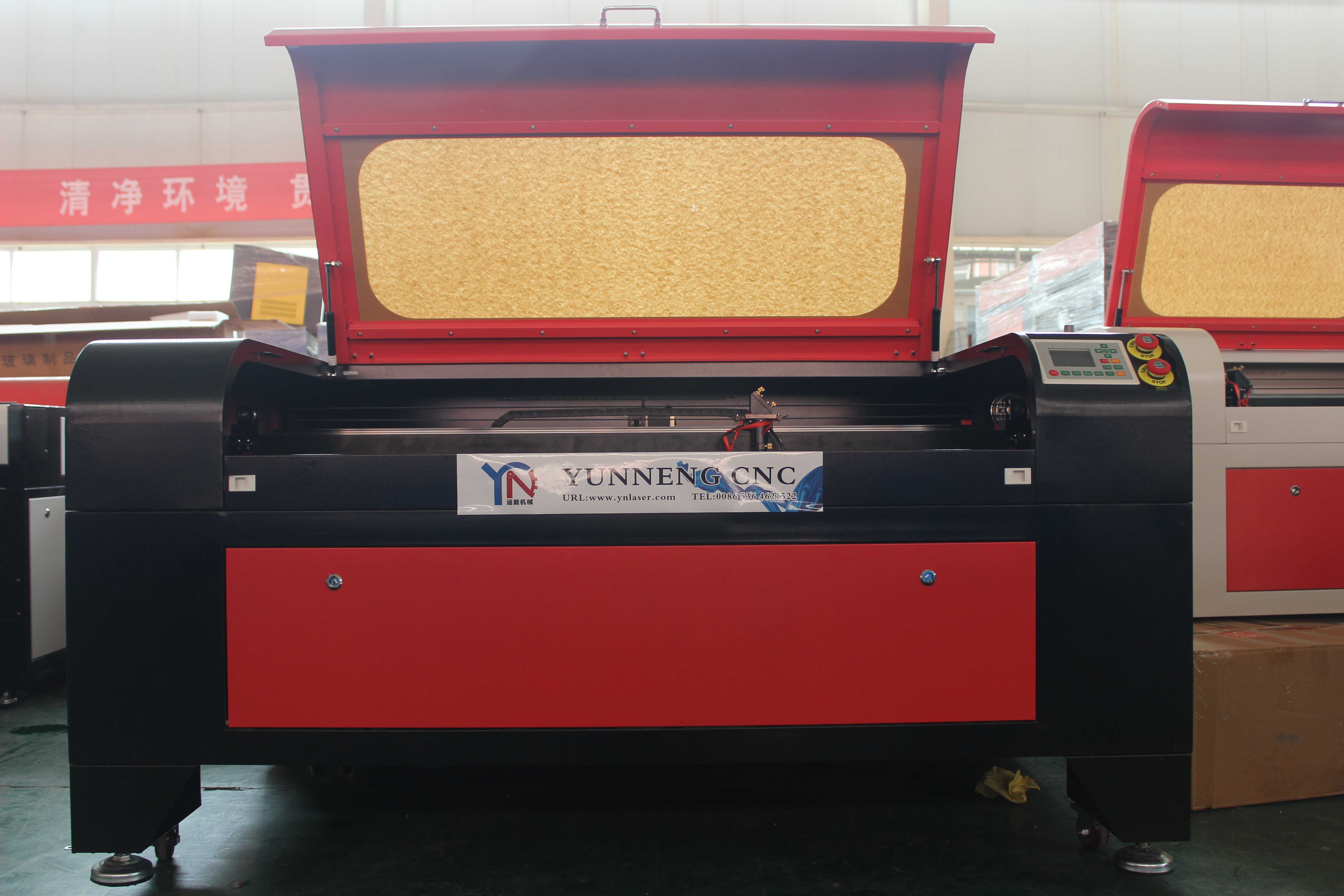

Laser cutting machine
Applicable materials
Metal material such as stainless steel, carbon steel. Non-metal materials such as double color board, acrylic glass, bamboo and wood, rubber, marble, granite and tiles, leather etc
Applicable industry
Mainly used for advertising industry(stainless metal and carbon steel), sheet metal industry(carbon steel), packaging industry(die board) and billboards, artistic gifts, crystal ornaments, paper-cut, bamboo and wooden product, garment and leather, embroidery, decoration and upholster industry etc
Product parameters
|
Processing area |
600*900mm ,1300*900mm, 1600*1000mm ,1800*1000mm,1300*2500mm,20000*3000mm,co2 laser engraving cutting machine |
|
Laser tube |
60W/80W/130W/150W/180W for choose |
|
Engraving speed |
0-60000mm/min |
|
Cutting speed |
0-10000mm/min |
|
Resolution ratio |
<0.01mm |
|
Location precision |
<0.01mm |
|
Voltage |
110V±10%/ 220V±10% ,50HZ ~60HZ |
|
Cutting thickness |
depends, please contact us or send your materails for free testing |
|
Minimum character |
Letter 1.0 x 1.0mm |
|
Support graphic format |
JPG, PNG, BMP, PLT, DST, DXF, CDR, AI, DSB, GIF, MNG, TIF, TGA, PCX, JP2, JPC, PGX, RAS, PNM, SKA, RAW , etc. |
|
Laser tube's life |
10000 hours |
|
Operating temperature |
5%-95% Free of condensed water |
|
Interface |
USB |
|
Control system |
RUIDA-6445 (support Light burn) |
|
Standard accessories |
550W exhaust fan with 4 pieces smoke pipes,ACO008 air pump, Water chiller CW3000 or CW5200,Honey or blade table |
|
Option device |
Electrical up-down system, Rotary platform |
|

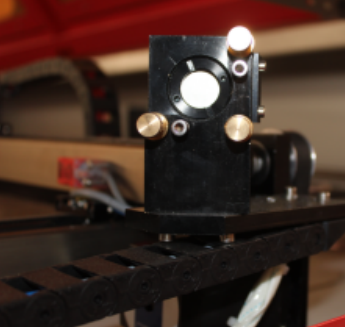

The solution is to make a bracket with a hole facing to the mirror,customer would only need to stick the sticker to the bracket without need to contact with the mirror,in this way,it will keep mirror clean all the time even when the user to adjust the laser beam for different materials |
 |

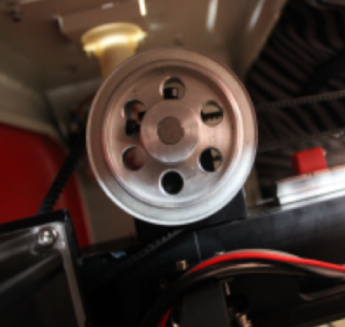

The pulley contains 74 teeth provides higher speed than previous smaller pulley no matter in strength or the running lifespan |  |

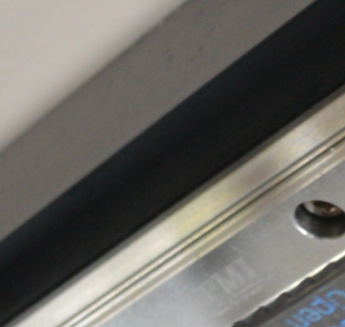

| Original Taiwan Linear Guiderail |  |

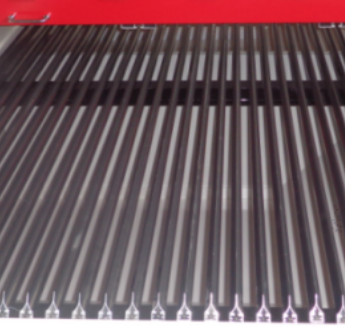

Aluminum strip table |  |

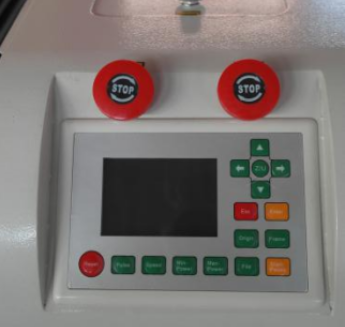

| RD control system , easy to operate |  |

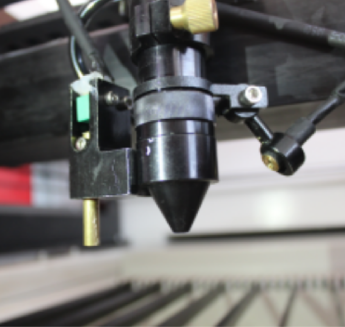

Auto focus which will easy to find the best focus length for different materials in different thickness automatic |  |
| Electronic box |  |

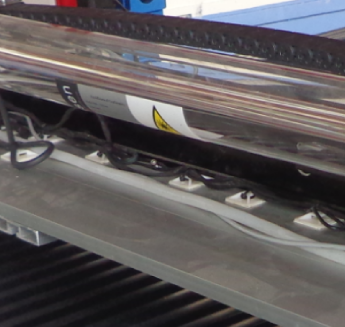

100W laser tube, Leifang brand, can cut 2mm stainless steel and 30mm non metal. 10 months warranty . |  |
|

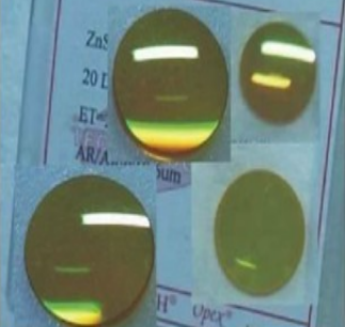

Imported focus lens and reflect mirrors ( Imported len and mirrors guarantee the powerful cutting strength |
 |
Exhaust Fan ( Install big power exhaust systme which can take off most smoke when cutting) |
 |
| Water chiller CW5200 ( Water cooling with water protection system provide a good working condition for laser tube) |
 |
Air pump ( Blow cutting waste and keep good working effect) |
 |
