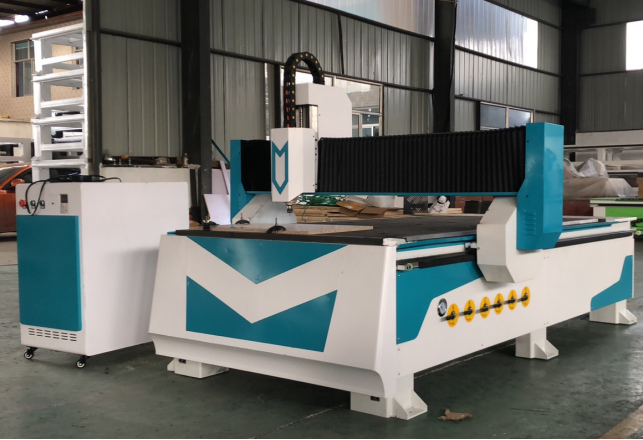

CNC ROUTER
|
Standard Machine Features |
Description |
|
|
1200*1200mm/1300*2500mm/ 2000*3000mm effective working area |
8-10mm Steel gantry, big and thick square tube, heavy-duty structure |
|
|
Bigger welded steel tube machine body |
Thicker steel tube frame with 4legs(also have 4 adjust screw), more solid and stable for the machine |
|
|
3KW water cooling spindle 0-24000 rpm Can update spindle power accordingly |
With lower noise, easy maintenance, use industry standard ER collects, From 6000-24000rpm/min. |
|
|
DSPA11 control system |
Famous Brand control system ,computer control panel with USB |
|
|

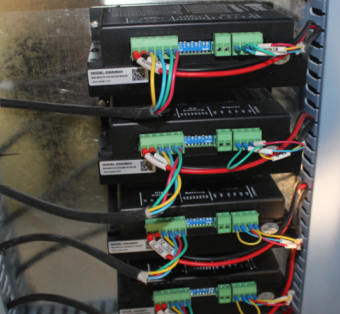

Leadshine big driver |
4sets in total, double motors for Y axis, Each one for X and Z axis |
|
|
Taiwan linear guide way for X,Y,Z axis |
Famous brand, can improve high precision, smooth transmission, fast speed, low noise, and it has 10 times longer life than normal |
|
|

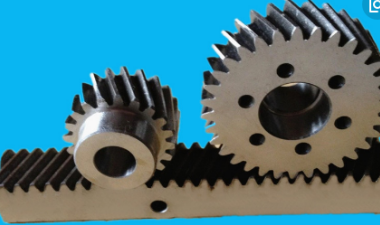

Helical rack gears for X,Y axis |
1.25M, big loading capacity, very powerful for machine, long lifetime |
|
|
Taiwan TBI ball screw for Z axis |
Accurate precision, smooth transmission. |
|
|

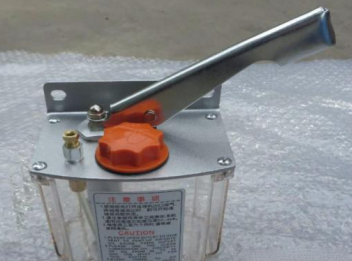

oil lubrication system |
Help lubricate the rail way, maintaining machine good performance. |
|
|
Soft limit switch |
Help to protect machine axis. |
|
|
Working voltage |
380V,3phase,50HZ |
|
|
software |
Professional software Artcam software |
|
|
Standard Accessories equipped :
|

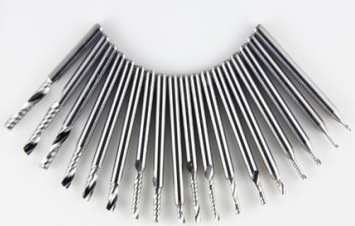

Tool Box 1set One set of engraving cutters ER20 2 pcs collet 3.175mm 1pc ,6mm 1pc Fixture :6pcs 6.Spanner 2pcs Adjustment screw 6pcs |
|
|
|
Vacuum & T-slot |
You can fix the material by clamps on the T-slot table , and you can also use the vacuum pump to fix the material |
|
|
Vacuum pump 5.5KW |
To provide the vacuum suction
|
|
Dust collector system |
3kw dust collector With dust collector tube and hood
|
|
CNC Machine Details
 |
 |
 |

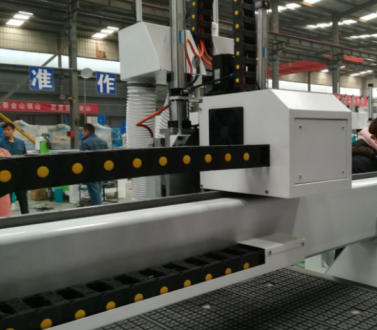

| Strong Body Structure | Machine Backside | Heavy gantry |
 |
 |
 |

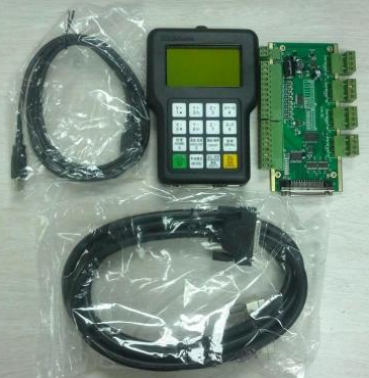

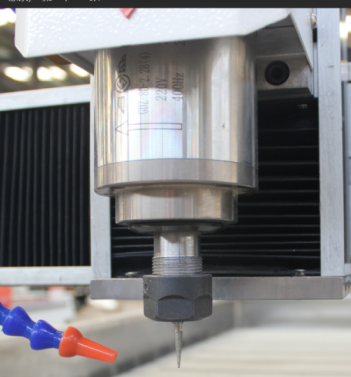

| 3KW air cooling spindle | Best inverter | DSP A11 DSP hand controller |
 |
 |
 |

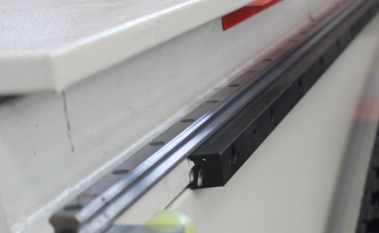

| Taiwan 20# Linear Rails | Taiwan TBI Ball Screw | 1.25M Helical Rack&Pinions |
 |
 |
 |

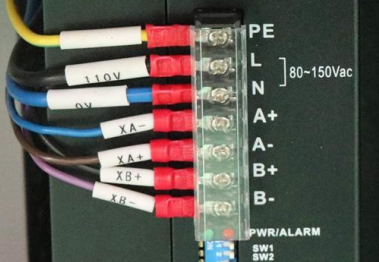

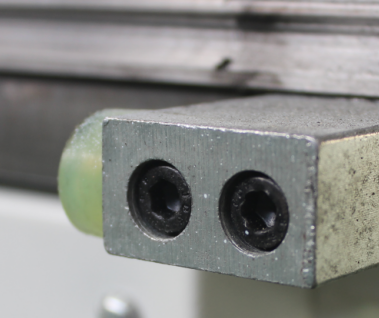

| 86 stepper motor | Leadshine driver and motor | Safety Hard Limit |
 |
 |
 |

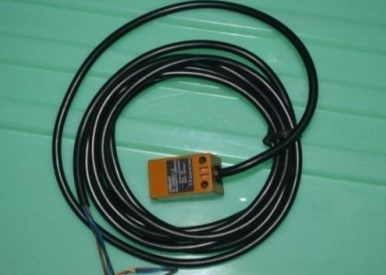

| Vacuum table | Japan OMRON limit switch | Clamps ( 6 pieces ) |
 |
 |
 |
| CE/UL Cardiff Electric cables | Oil lubrication | Electric Wires with label |
 |
 |
 |

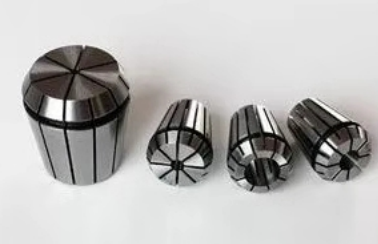

| Machine tools ( more bits can be supplied according to your request ) | Collet for Tools | Vacuum pump |
Technical Parameters
|
Item |
YN1325 |
YN1530 |
|
Working Size |
1300*2500*200mm |
1300*3000*200mm |
|
Spindle Power |
3kw/4.5kw/5.5kw or bigger |
|
|
X, Y axis transmission |
Helical rack and gear box , 20# Rail Linear
Bearing |
|
|
Z axis transmission |
20# Rail Linear Bearing & TBI Ball Screw #2510 |
|
|
Max. Rapid Travel Speed |
30m/min |
|
|
Max. Working Speed |
10m/min |
|
|
motor driver |
Leadshine big driver |
|
|
Inverter |

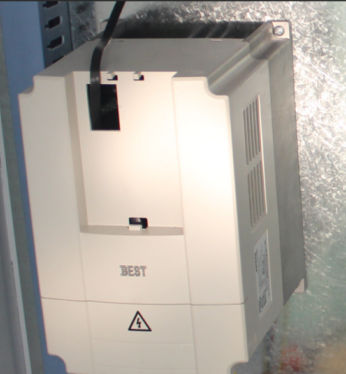

BEST 3.7KW inverter |
|
|
Control System |
DSP A11 control system |
|
|
Table surface |
Aluminum T-slot & vacuum table |
|
|
X,Y Resolution |
<0.03mm |
|
|
Running Environment Temperature |
0 – 45 Centigrade |
|
|
Relative Humidity |
30% – 75% |
|
|
Software |
ARTCAM Included |
|
|
Net Weight |
900kg |
1200kg |
|
Gross Weight |
1000kg |
1400kg |
Sample pictures
1. Wood furniture industry
Doors; Cabinets; Tables; Chairs.
Wave plate, fine pattern, antique furniture, wooden door, screen, craft sash, composite gates, cupboard doors, interior doors, sofa legs, headboards and so on.
2. Advertising industry
Signage; Logo; Badges; Display board; Meeting sign board; Billboard
Advertising filed, sign making, acrylic engraving and cutting, crystal word making, blaster molding, and other advertising materials derivatives making.
3. Die industry
A sculpture of copper, aluminum, iron and other metal molds, as well as artificial marble, sand , plastic sheeting, PVC pipe, and other non-metallic mold.
4. Artwork and Decoration
wood crafts; gift box; jewelry box
5. Others
Relief sculpture and 3D engraving and Cylindrical object.
 |
 |
 |
 |
 |
 |
 |
 |
 |

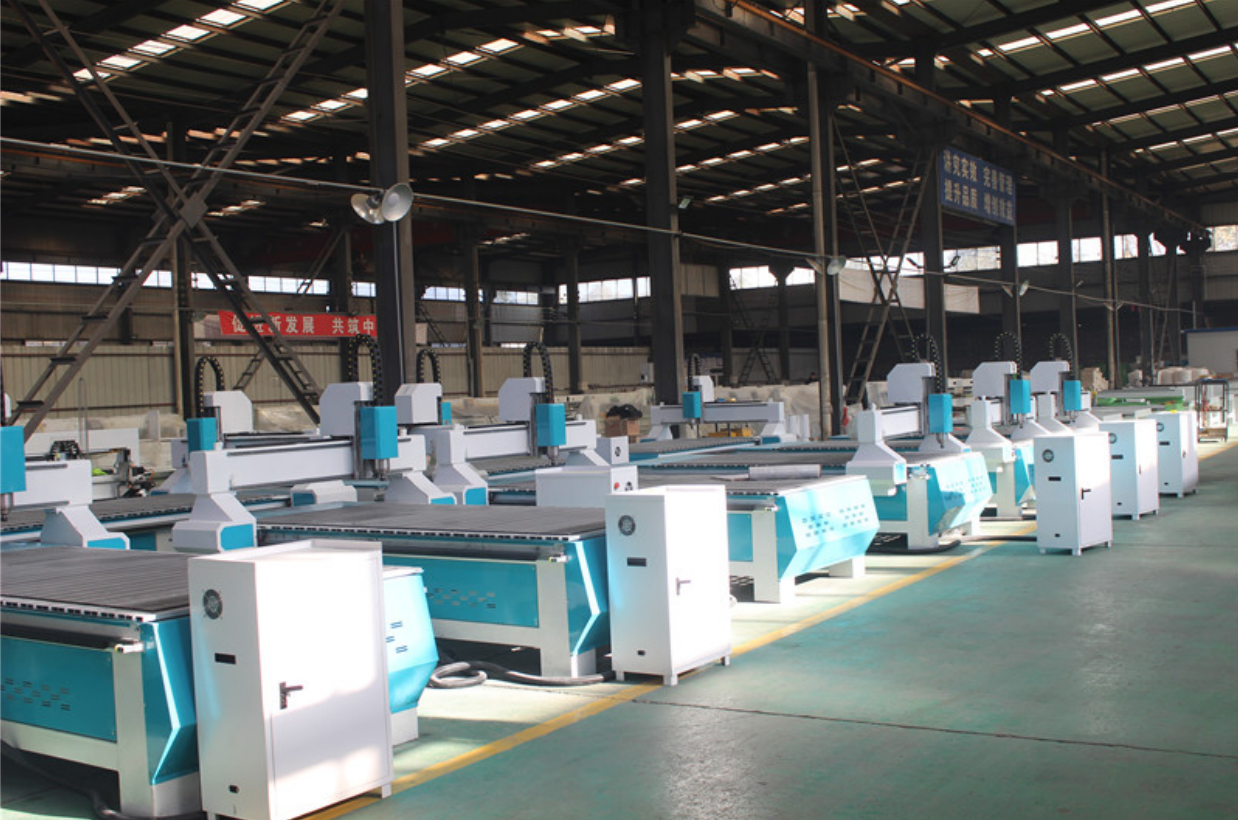

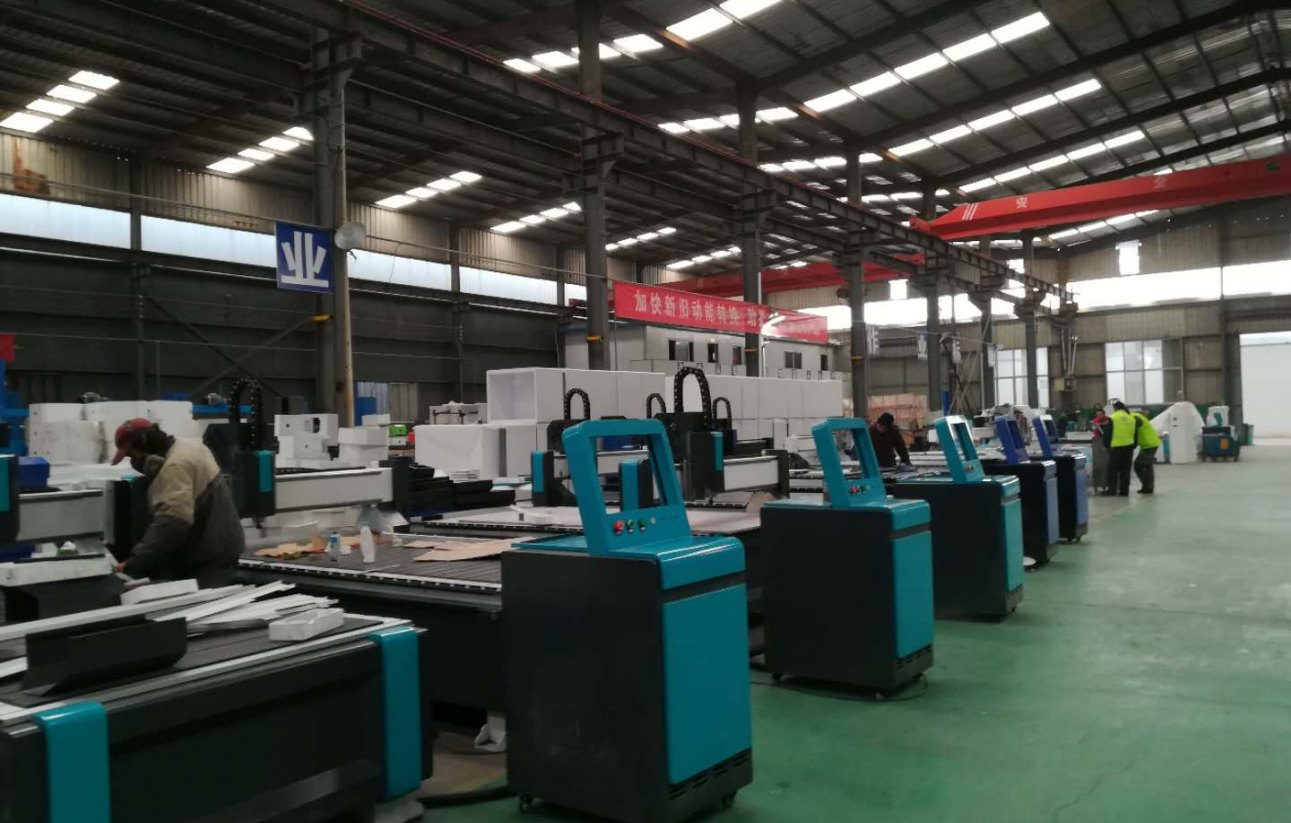

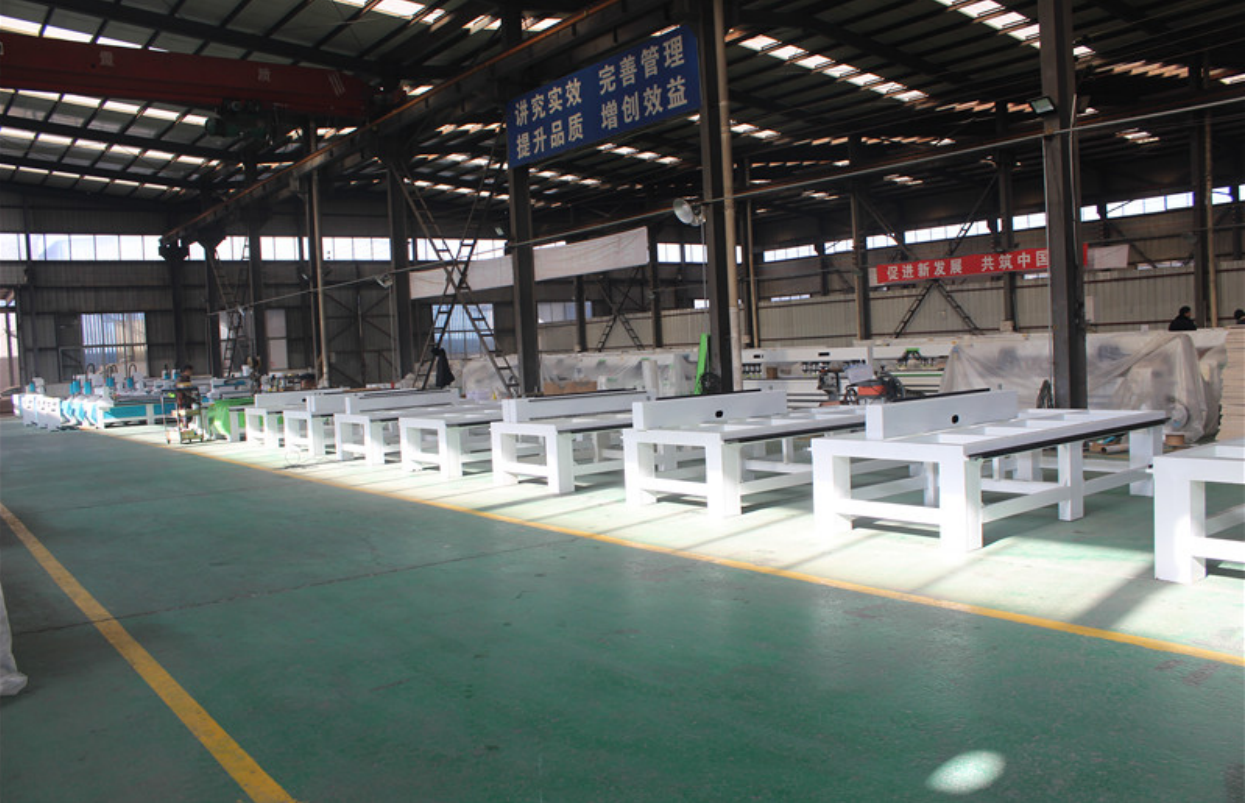

Factory pictures
