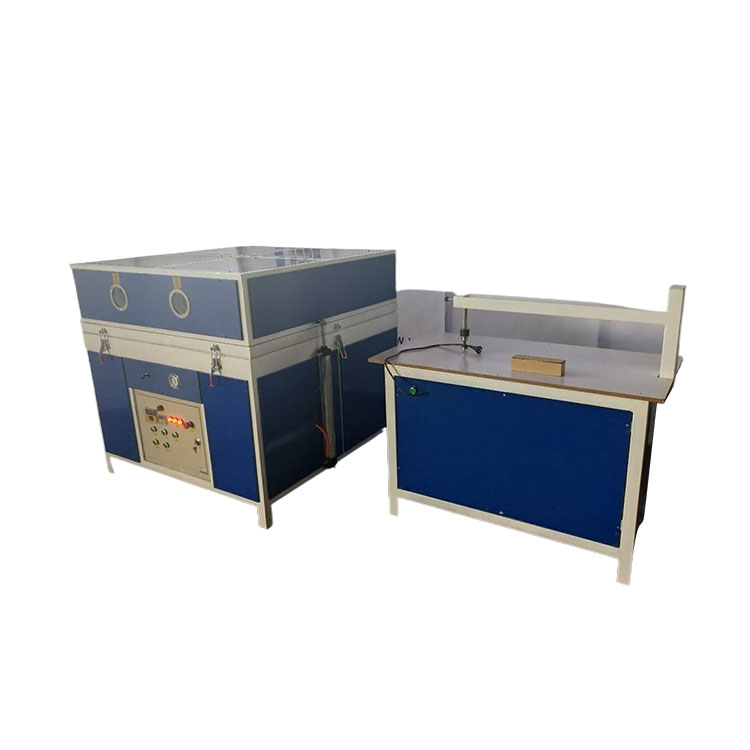

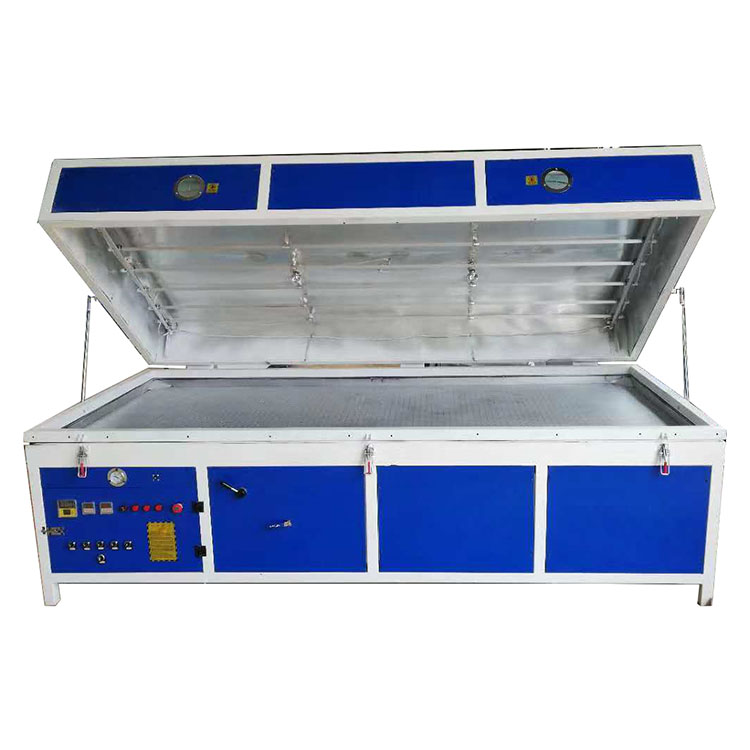

Vacuum Forming machine YN-X type
Application Industry and material
1)Plastic moulding&mask making
2)Advertising signage making
3)University or research institutions teaching experiments
4)Chocolate and cake package box making
5)Industrial & automobile decoration
6)Other thermoplastic material forming industrial
7) Application material: PMMA(Acrylic ), PVC,ABS,PE,PET ,Poly styrene ,poly propylene ect.
Feature

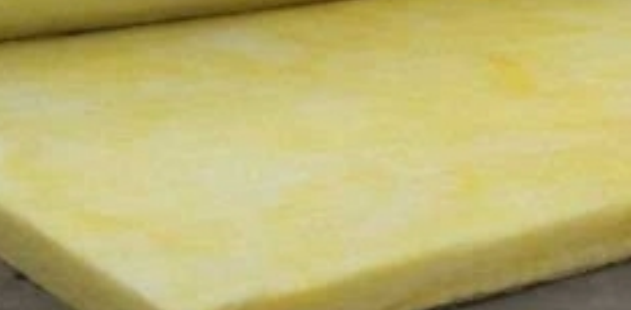

1.Intelligent temperature control, heating box use the shaped reflector and thickened insulation layer, heating fast and with good insulation and safety performance.
2.Customized heaters from factory which can run 24hours continuously, service life up to 8000-10000 hours, the working temperature difference is±5 degrees, which can ensure even softening temperature of plate.
3.Working platform is made of steel which is high temperature resistant and long life service.
4.Adopt single mould forming, easy operation, lower raw material and labor cost.
Product parameters
|
Model |
YN-1212X |
YN-1224X |
YN-1530XY |
YN-2030X |
|
Working area(mm)(L*W) |
1200*1200 |
1200*2400 |
1500*3000 |
2000*3000 |
|
Forming area(mm)(L*W) |
1140*1140 |
1140*2340 |
1440*2940 |
1940*2940 |
|
Function |
suction |
suction |
suction |
suction |
|
Max. suction forming depth(mm) |
80mm |
80mm |
80mm |
80mm |
|
Oven open style |
Manual/Automatic open |
Automatic open |
Automatic open |
Automatic open |
|
Zone heating |
Yes |
yes |
Yes |
yes |
|
Suction holes |
1 |
3 |
3 |
3 |
|
Vacuum pump output |
28.8m³/h |
40m³/h |
63m³/h |
63m³/h |
|
Total power(kw) |
8 |
20 |
28 |
32 |
|
Working Voltage |
1PH 220V AC380V /3P/50-60HZ |
AC380V /3P/50-60HZ |
AC380V /3P/50-60HZ |
AC380V /3P/50-60HZ |
|
Net Weight (kgs) |
400 |
600 |
800 |
1000 |
|
Overall size (mm) (L*W*H) |
1450*1250*1100 |
1450*2750*1100 |
1750*3350*1100 |
2250*3350*1100 |

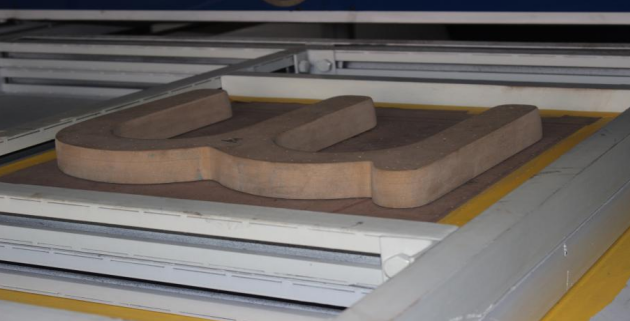

Product sample
Exhibition photos
Factory photo
