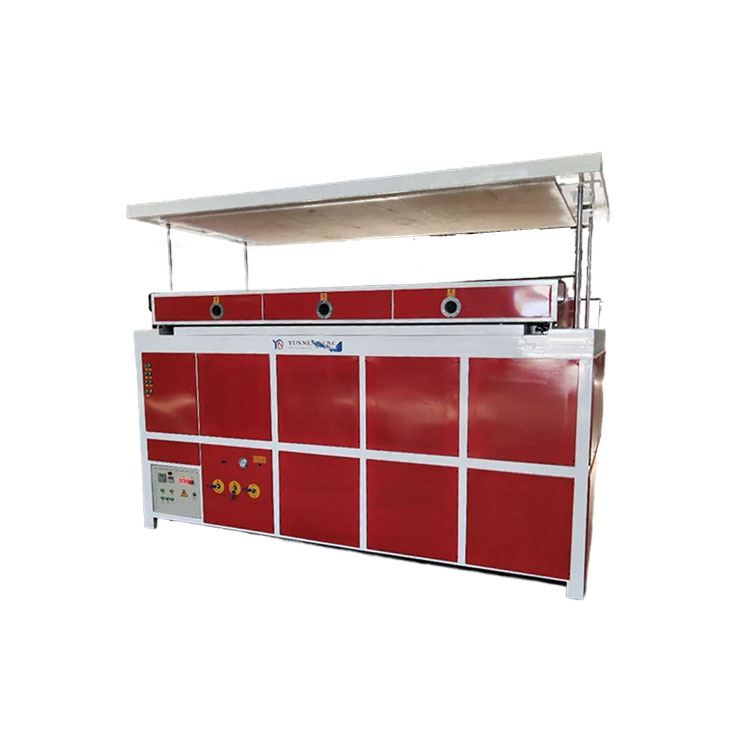

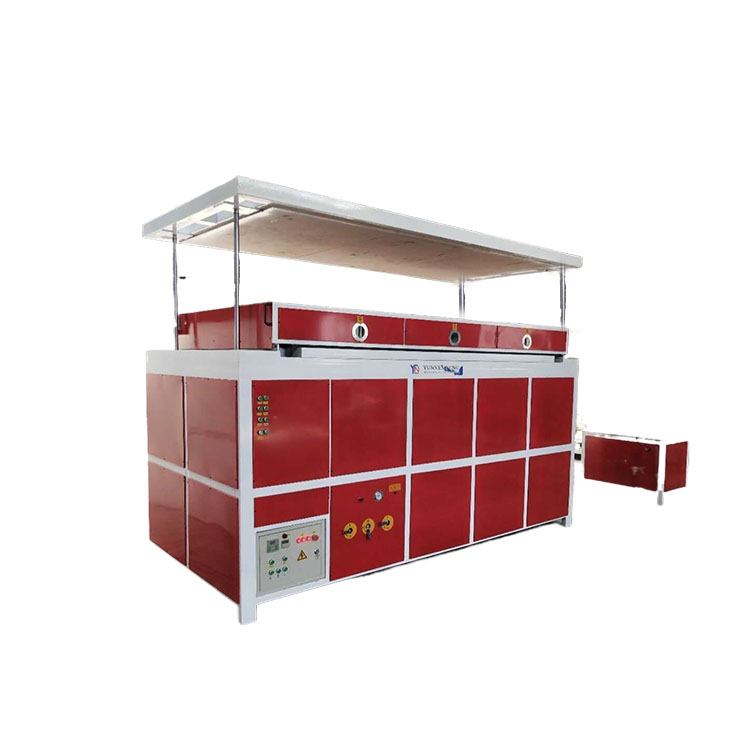

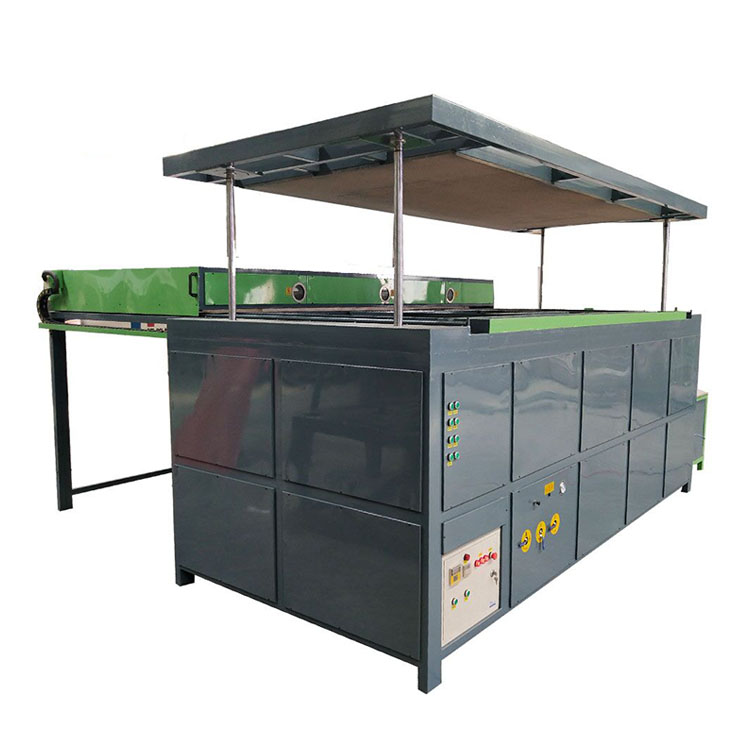

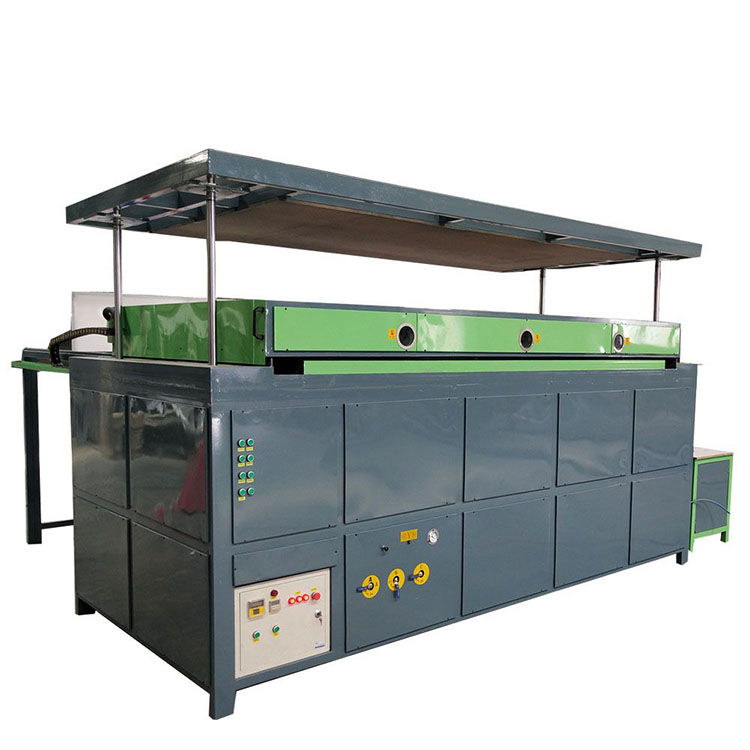

Vacuum forming machine YN-XYC type
Vacuum forming machine YN-XYC type
1)Plastic moulding&mask making
2)Advertising signage making
3)University or research institutions teaching experiments
4)Chocolate and cake package box making
5)Industrial & automobile decoration
6)Other thermoplastic material forming industrial
7)Application material: PMMA(Acrylic ), PVC,ABS,PE,PET ,Poly styrene ,poly propylene ect.
Technical Parameter
|
Model |
YN-1200XYC |
YN-1224XYC |
YN-1530XYC |
YN-1830XYC |
|
Working area(mm)(L*W) |
1200*1200 |
1200*2400 |
1500*3000 |
1800*3000 |
|
Forming area(mm)(L*W) |
1140*1140 |
1140*2340 |
1440*2940 |
1740*2940 |
|
Function |
Suction & Blow |
Suction & Blow |
Suction & Blow |
Suction & Blow |
|
Max. suction forming depth(mm) |
500 |
500 |
500 |
500 |
|
Oven open style |
Automatic open |
Automatic open |
Automatic open |
Automatic open |
|
Heating area |
1 |
1 |
1 |
1 |
|
Vacuum pump output |
63m³/h |
100m³/h |
100m³/h |
200m³/h |
|
Total power(kw) |
10 |
20 |
28 |
30 |
|
Working Voltage |
AC380V /50HZ/3P or AC220V/50HZ/3P |
AC380V /50HZ/3P or AC220V/50HZ/3P |
AC380V /50HZ/3P or AC220V/50HZ/3P |
AC380V /50HZ/3P or AC220V/50HZ/3P |
|
Net Weight (kgs) |
600 |
1000 |
1400 |
1600 |
|
Overall size (mm) (L*W*H) |
2100*1760*1750 |
3380*1740*2070mm |
2200*4000*2200 |
2200*4000*2200 |
Feature

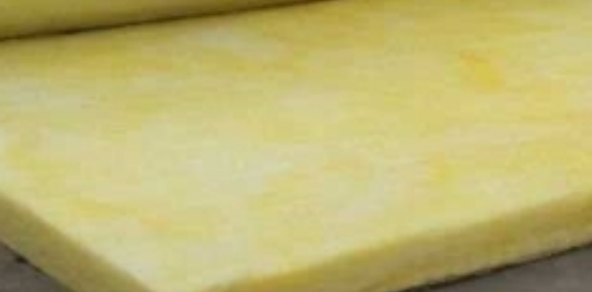

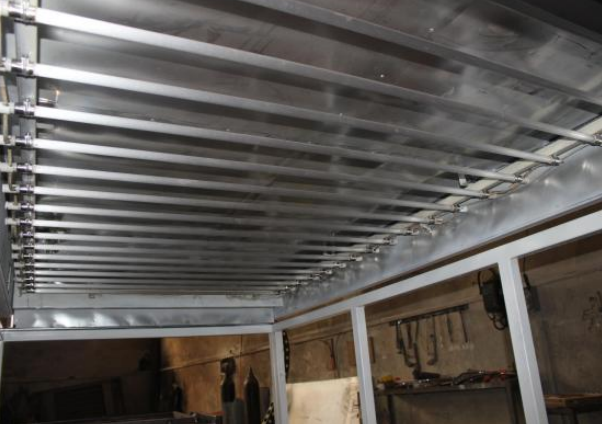

1.Intelligent temperature control, heating box use the shaped reflector and thickened insulation layer, heating fast and with good insulation and safety performance.
2. Customized heaters from factory which can run 24hours continuously, service life up to 8000-10000 hours, the working temperature difference is±5 degrees, which can ensure even softening temperature of plate

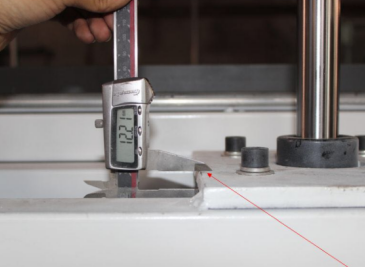

3.Working platform is made of steel which is high temperature resistant and long life service.Adopt single mould forming, easy operation, lower raw material and labor cost.

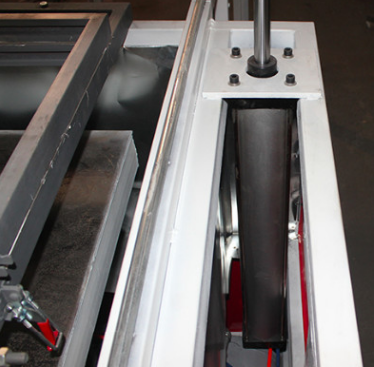

4. The aluminum alloy press frame controlled by two cylinders is more convenient to use and improves the sealing and forming effect.
5.Add movable platform controlled by two cylinder to ensure smooth lifting & increase the molding height.

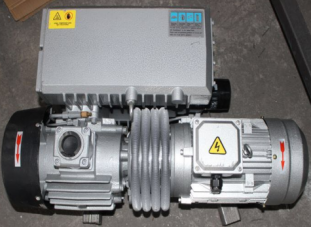

6.More powerful vacuum pump , finish vacuum forming sample more beautiful

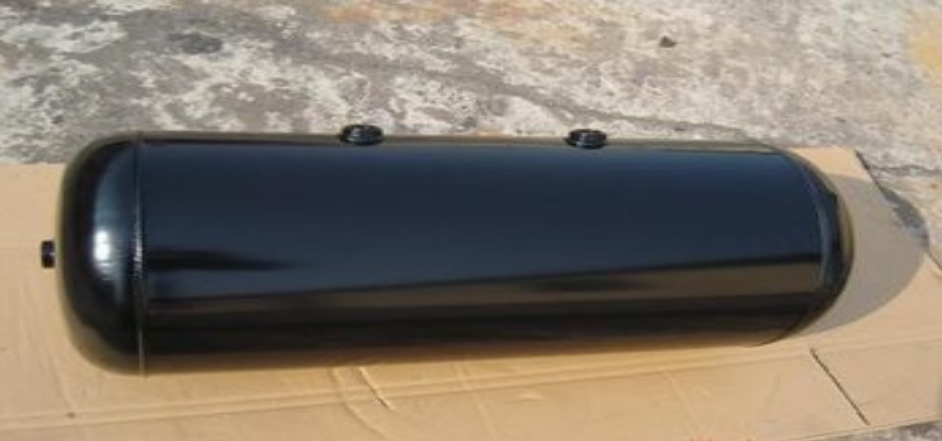

7.Air storage tank is installed to extend the service life of vacuum pump, at the moment of moulding, the suction force is stronger and the forming effect is better.

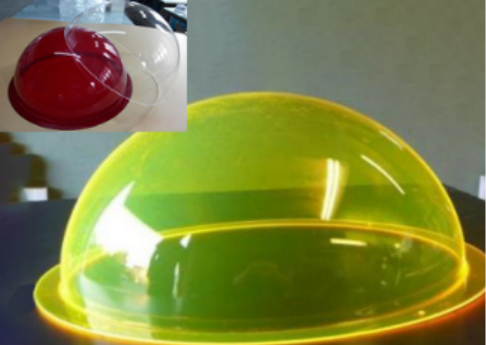

8.Add blowing function, not only easy to demoulding, and can complete the ball blow molding.

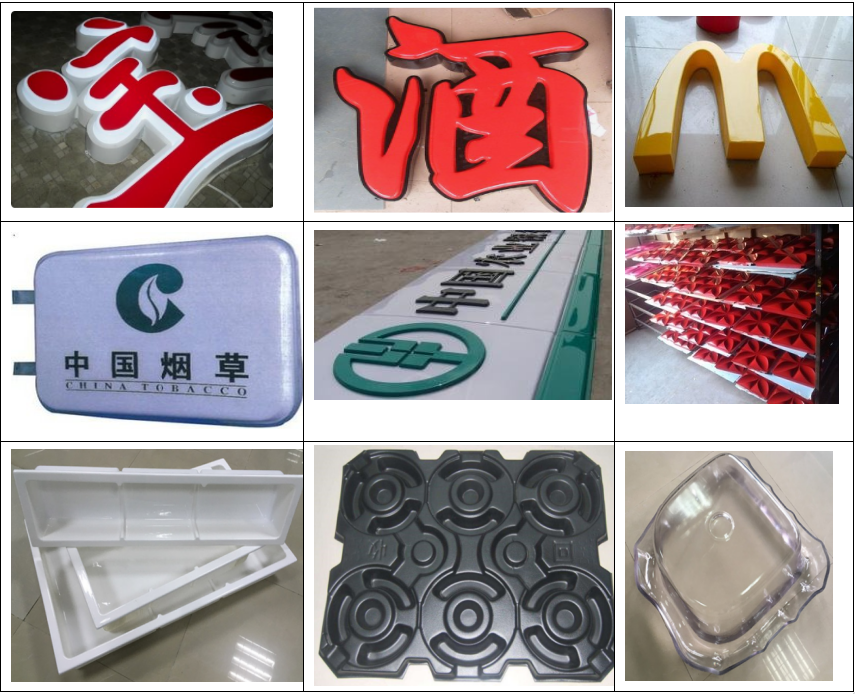

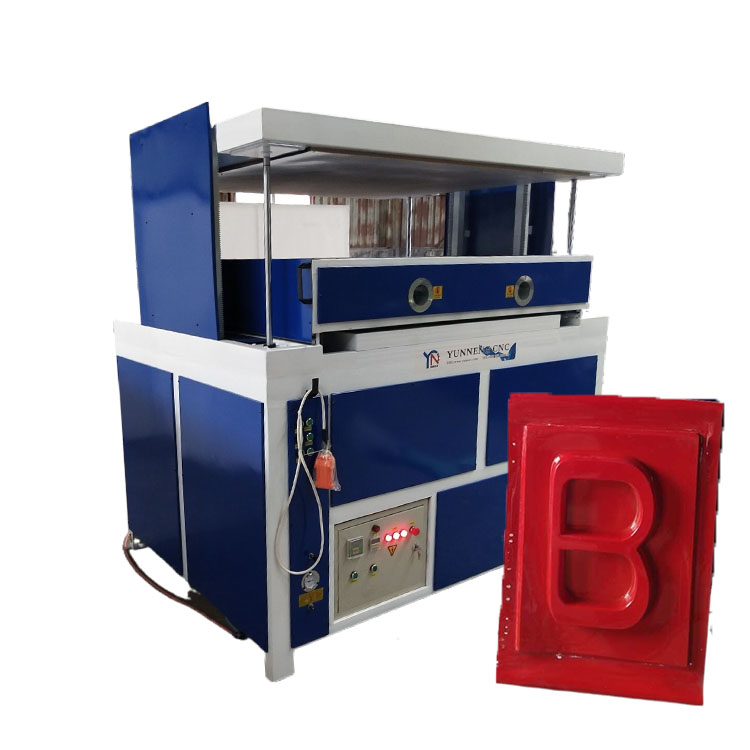

Product sample
