Silicone Vacuum membrane press machine
Brief Introduction
This design is a compact built, space-saving, combined thermo heating and forming unit.
The combination of a thermo heating oven with a vacuum press enables you to heat up various thermoforming materials
fast to their optimal forming temperature and then form them with vacuum in one machine.
Application Materials
Solid Surface materials: Corian, Staron, LG-Himacs, Plexicor, Wilsonart, Avonite.
Plastics:ABS, PMMA (Acrylic), PET-G , PS,PP,PVC etc
Detailed Pictures

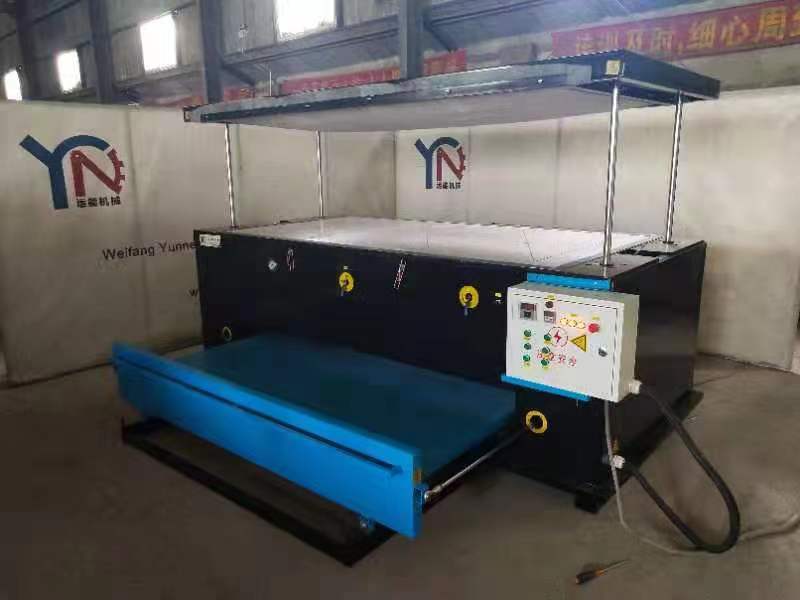

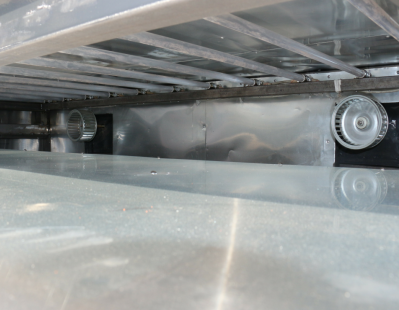

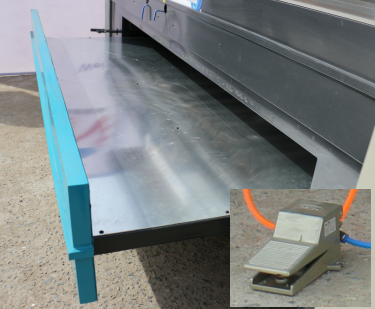

| Aluminum heating oven controlled by foot valve | With two hot circulation fans , to make heating evenly and fast. | Korean 3mm thicness silicone rubber with 700%stretch rate | 4 Air cylinders move up down , save labor cost, no need manual fix the silicone rubber |
 |
 |
 |
 |
| 4pcs 125*550 air cylinder | 100CBM/H VACUUM PUMP | Air Tank to ensure better suction performance | Omron electronic parts |
 |
 |
 |
 |

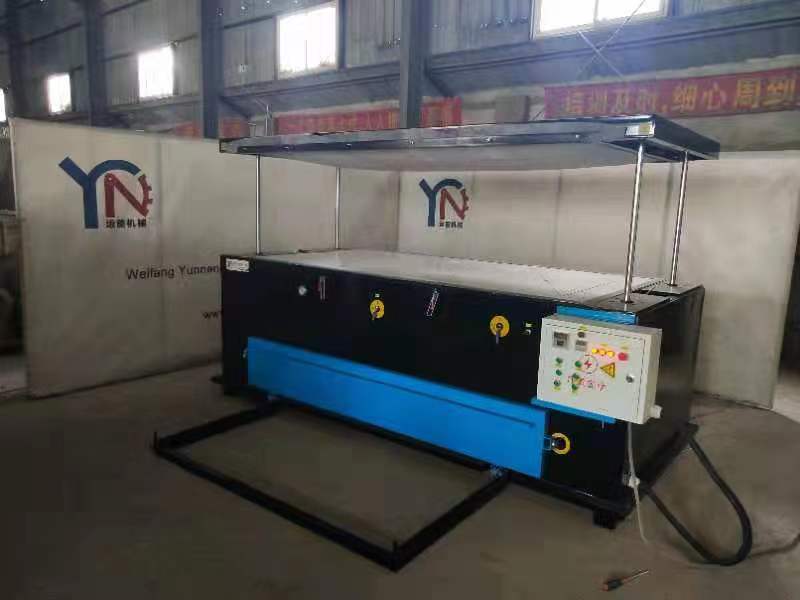

| Up to 50cm forming height | Cover for vacuum pump and tank | Independent control box | Wheels easy for movement |
 |
 |
 |
 |
Technical parameters
|
Item |
YN1325 |
|
Working table size, (lengh x width) , mm |
1220 x 2440 mm |
|
Heating table size (length x width) , mm
|
1000 x 2000mm |
|
Max Thickness of materials, mm |
20mm |
|
Thickness of silicone rubber |
3mm |
|
Max forming height, mm |
500mm |
|
stretch rate of Silicone membrane |
700% |
|
Working temperature of Silicone membrane |
-40℃-240℃ |
|
Life of heating tube,H |
15000 hours |
|
Heater capacity, kW |
20kW |
|
Vacuum pressure to max. |
9t/m2 |
|
Vacuum pump output , m3/h |
100 m3/h |
|
Vacuum tank |
Included |
|
Operational vacuum, MPa |
-0.85 MPa |
|
Power, V |
380V, 50/60Hz,3Ph |
|
Outline dimensions,mm |
3010x1550x1140mm |
